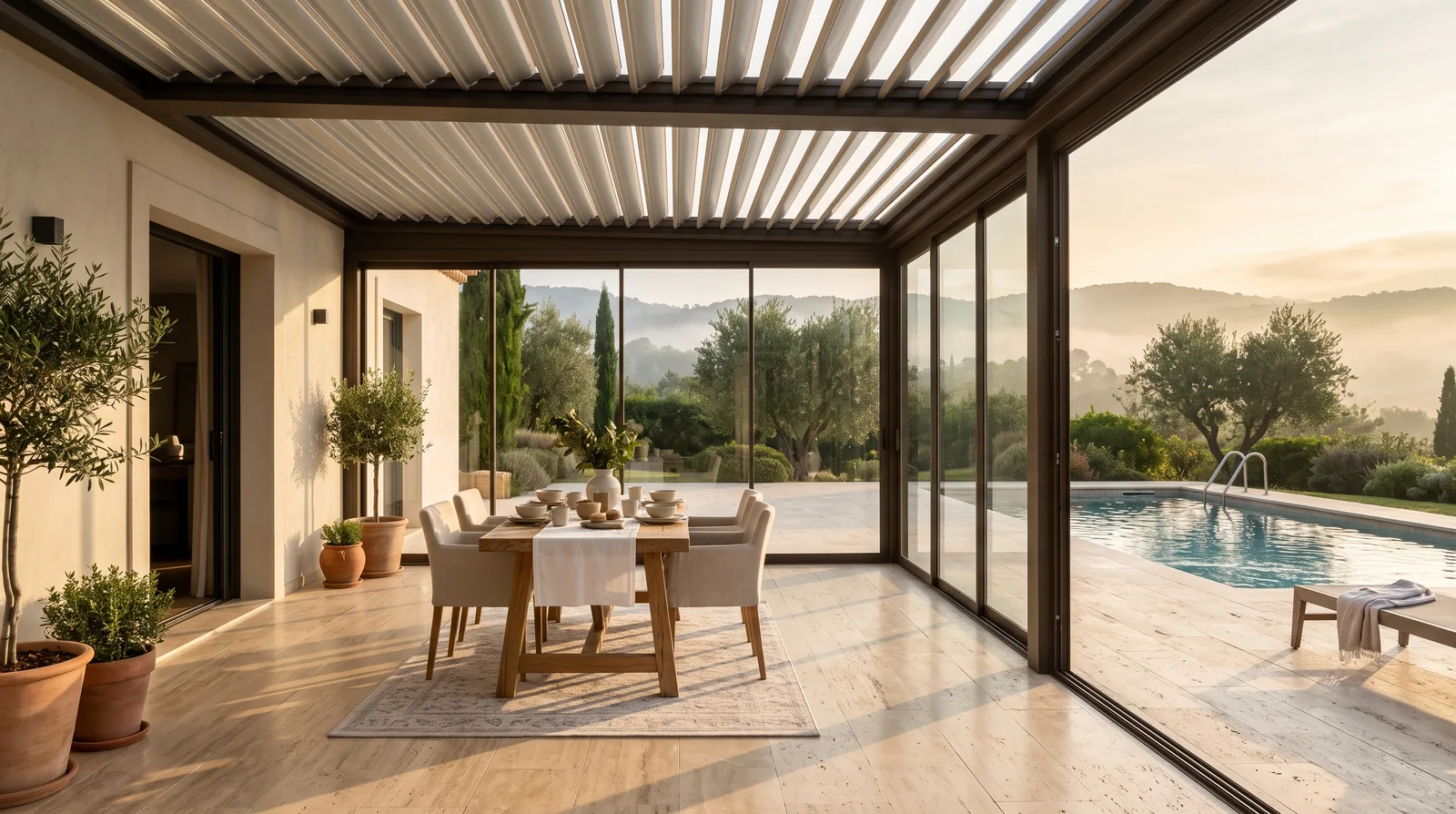

ENCLOSURE
Full-height glass closes the frame into a sealed room — and the blades still work overhead, so the same room can be opened to the sky, angled to shade, or closed to a draining plane.
GLAZED WALLS · BLADES OVERHEAD
CONFIGURATIONS

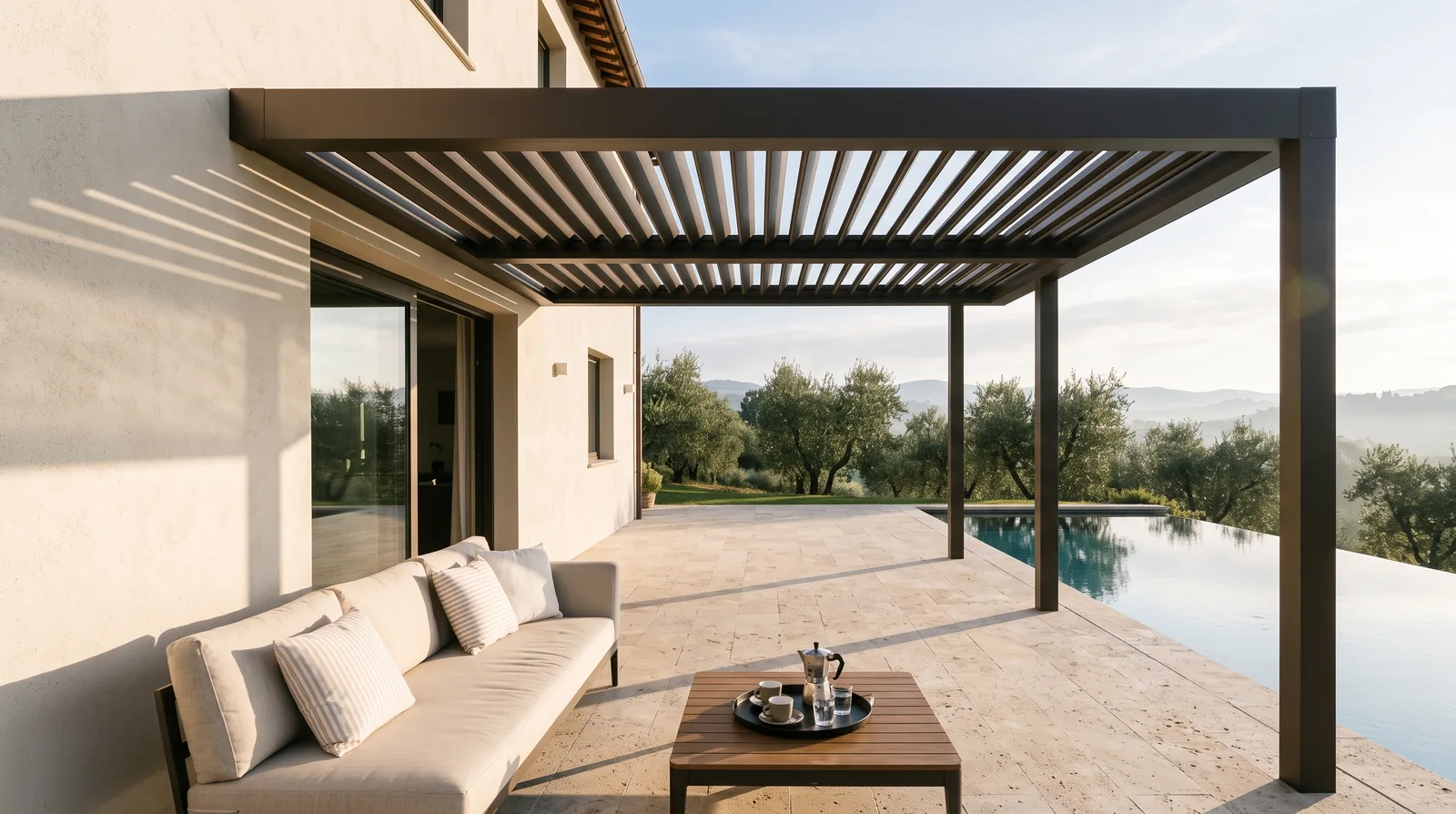

EXTENSION
The louvered plane runs off the house itself — a lean-to frame that turns the wall into shade, open-sided or part-screened.
HOUSE-ATTACHED · OPEN SIDES

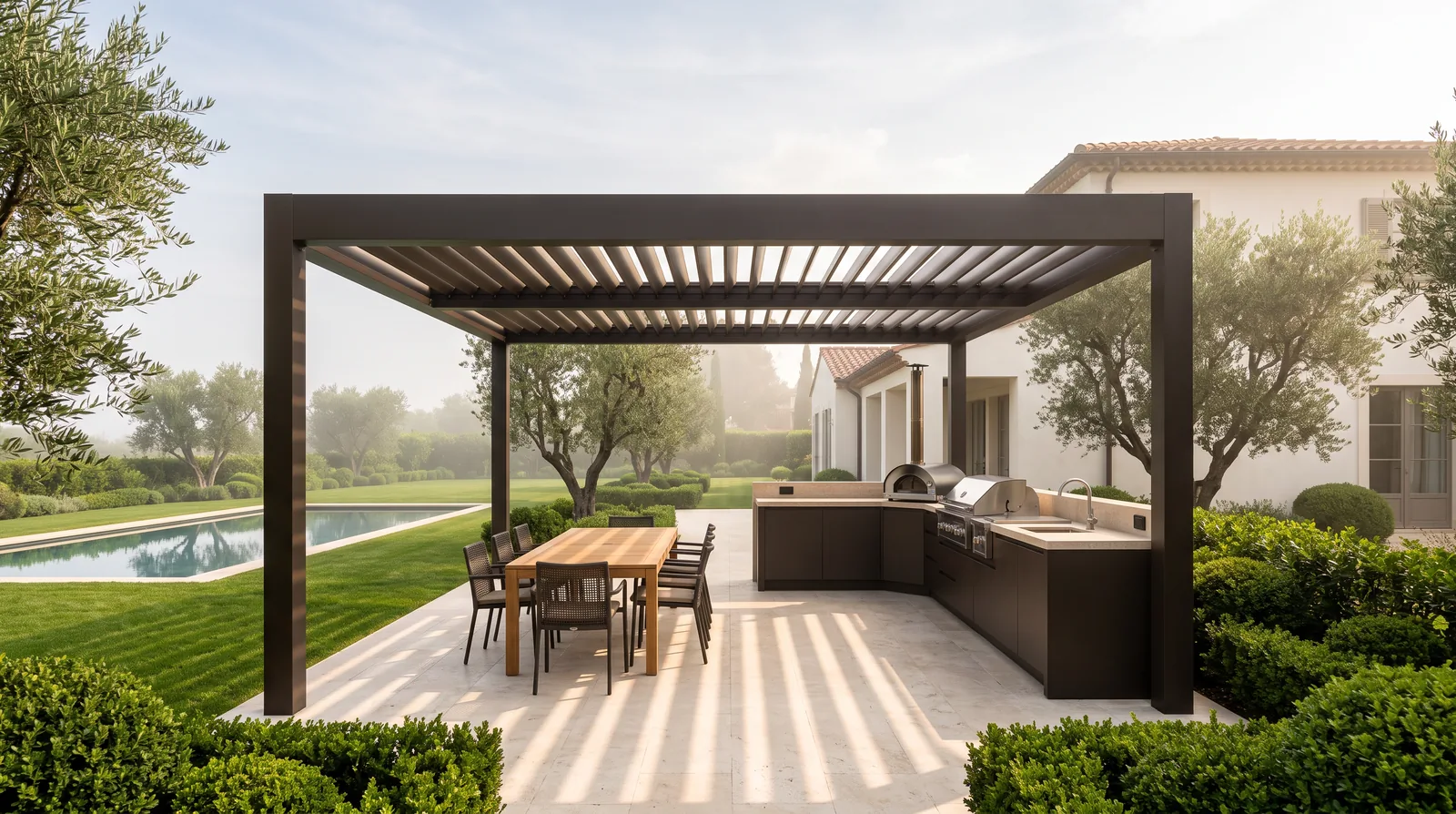

FREE-STANDING
Posts carry the roof alone — an independent object in the landscape: outdoor kitchen, poolside canopy, rooftop room.
SELF-SUPPORTING · ALL SIDES OPEN
150BC — DATA OF RECORD
R&D DRAWING SET — 21 SHEETS
- MECHANISM
- MOTORIZED ALUMINUM BLADES — OPEN SKY, ANGLED SHADE, OR A CLOSED PLANE THAT DRAINS
- POST
- 150 × 150 MM
- CARRIER BEAM
- 150 × 200 MM · 501 DRIVE RAIL
- PERIMETER GUTTER
- 152.5 × 182.8 MM · IN-GUTTER TUBULAR MOTOR

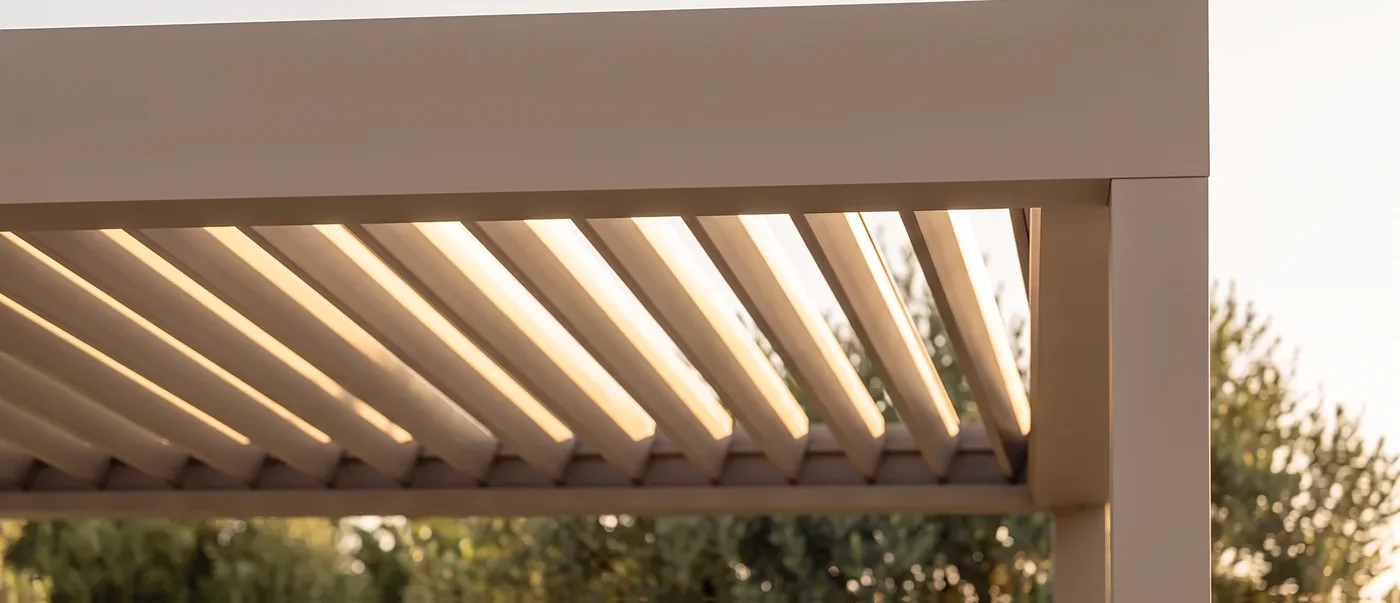

- BLADE
- 250 MM AT 250 MM PITCH
- LAMELLA
- ALUMINUM OR GLASS
- VARIANT
- ROLLING ROOF
- DEEP STUDY
- THE 150BC CHAPTER — SHEETS S01–S04
THE WATER PATH
Close the blades and the roof becomes a draining plane. Water crosses the closed lamellas into the 152.5 × 182.8 mm perimeter gutter, travels inside the frame, and leaves down through the posts — the site stays dry, the structure stays clean.
The tubular motor rides inside the perimeter gutter — the drive is part of the frame, not an attachment.
GALLERY
PROJECT PHOTOGRAPHY
THREE OF FIFTEEN FRAMES. THE FULL REGISTER — EIGHT INSTALLATIONS — IS ON THE GALLERY.
THE LOUVERED GALLERYSIDE SYSTEMS
EVERY ROOF TAKES THEM
SLIDING GLASSFRAMED PANELS THAT SLIDE THE ROOM CLOSEDOPEN
GUILLOTINE GLASSVERTICAL GLASS THAT RISES ON COMMANDOPEN
ZIP SCREENSTENSIONED SCREENS IN SEALED CHANNELSOPEN
CONTROL — MOTORIZED · SMART-HOME COMPATIBLE · ALL SIX UPGRADES, AS PRINTED →
FOUR WAYS TO HOLD THE SKY
150BC — RAISED IN ORDER
SCROLL — THE PARTS TAKE THEIR POSITIONS · STUDIO SEQUENCE
SPECIFIED PER PROJECT · DRAWN BEFORE BUILT
