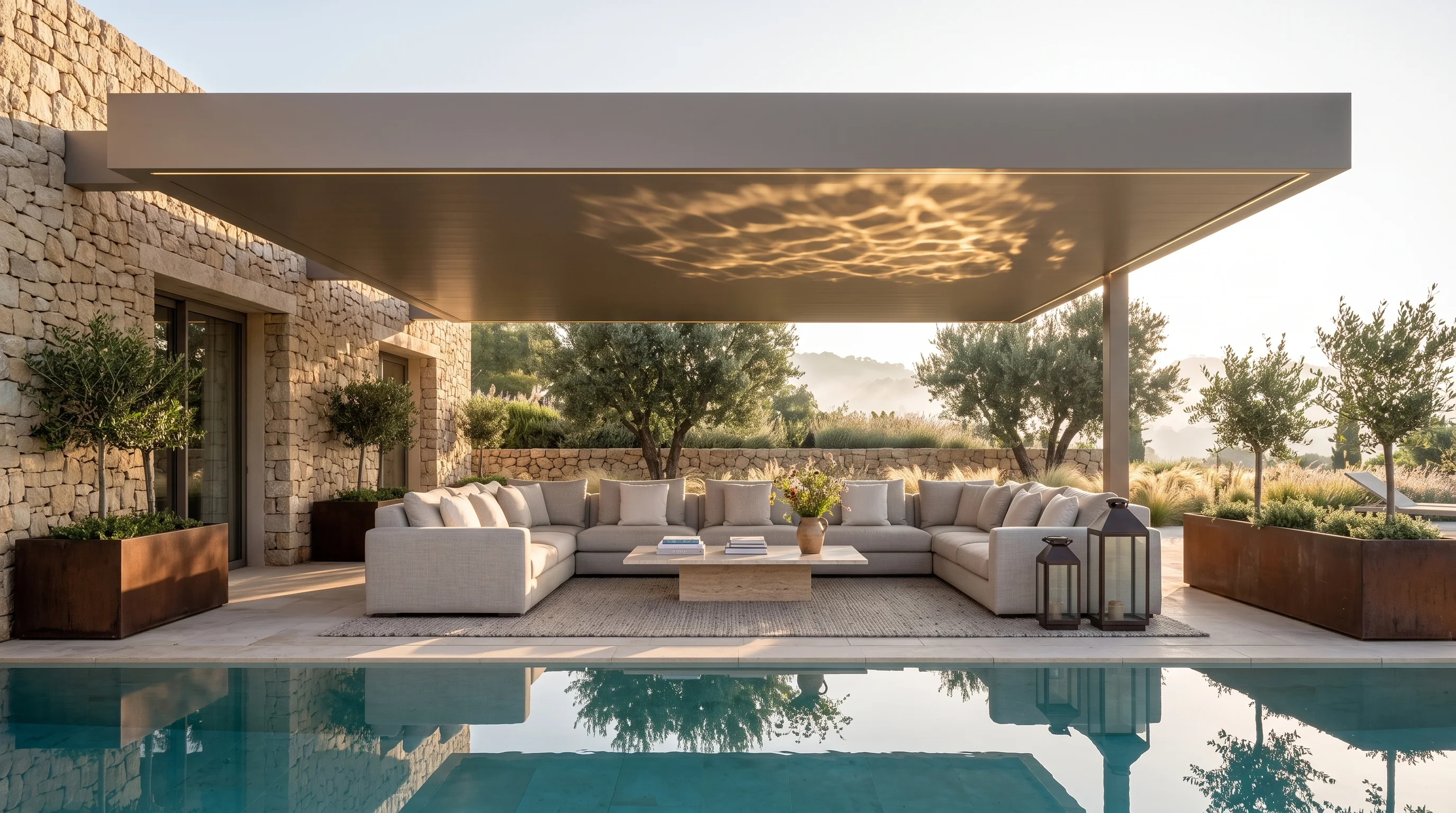

Hard top pergola over an outdoor living room, pool light playing on the solid roof underside
HOME / PERGOLAS / HARD TOP

HARD TOP

R2 · THE FOUR-SEASON ROOM
THREE WAYS TO STAND

CONFIGURATIONS

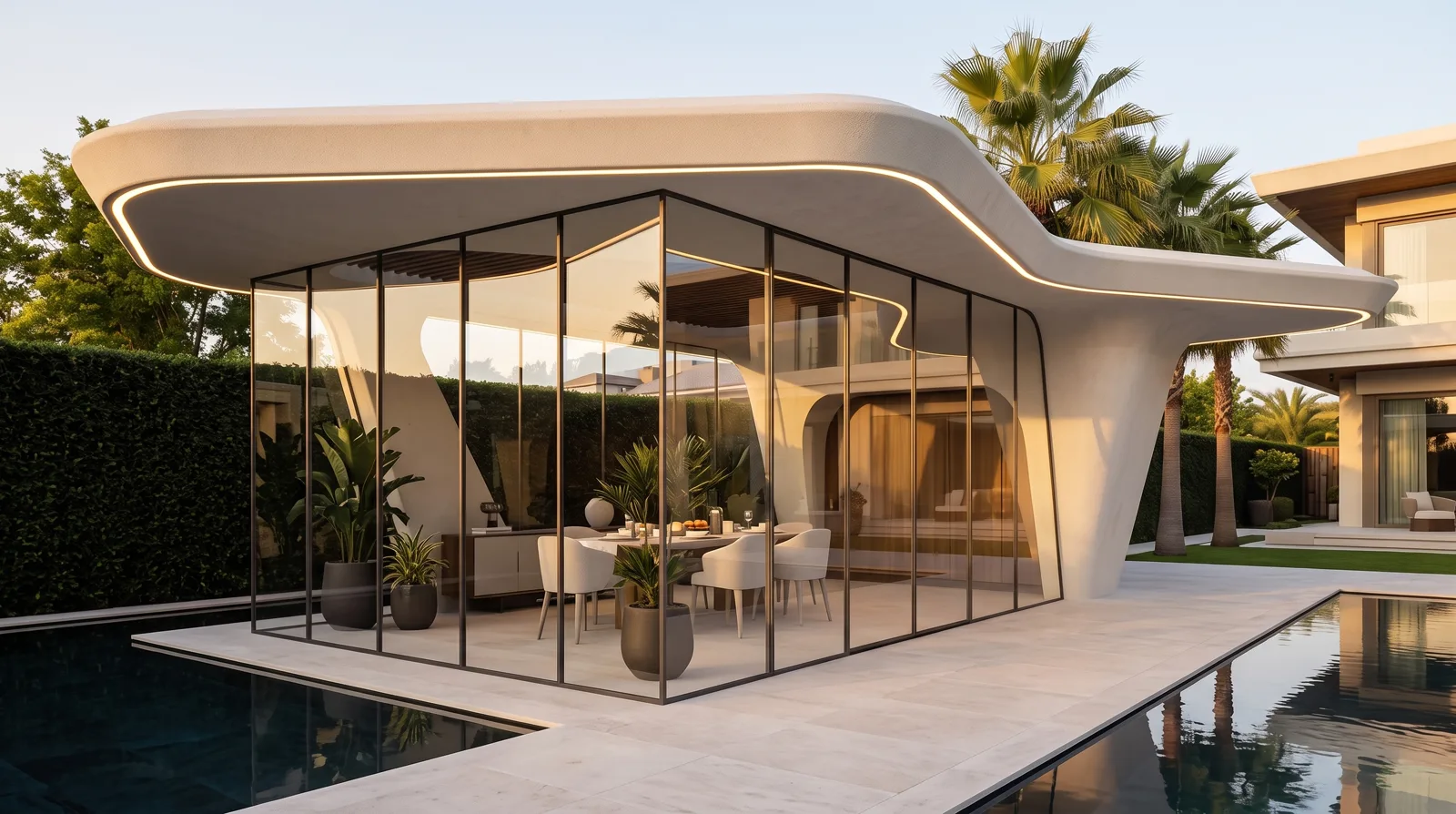

A sculptural white canopy closed into a glazed room, its lit rim tracing the roof edge above a set table

ENCLOSURE

Full-height glass closes the frame into a sealed room — sliding or stacking walls, indoor comfort at the edge of the house.

GLAZED WALLS · SEALED ROOM

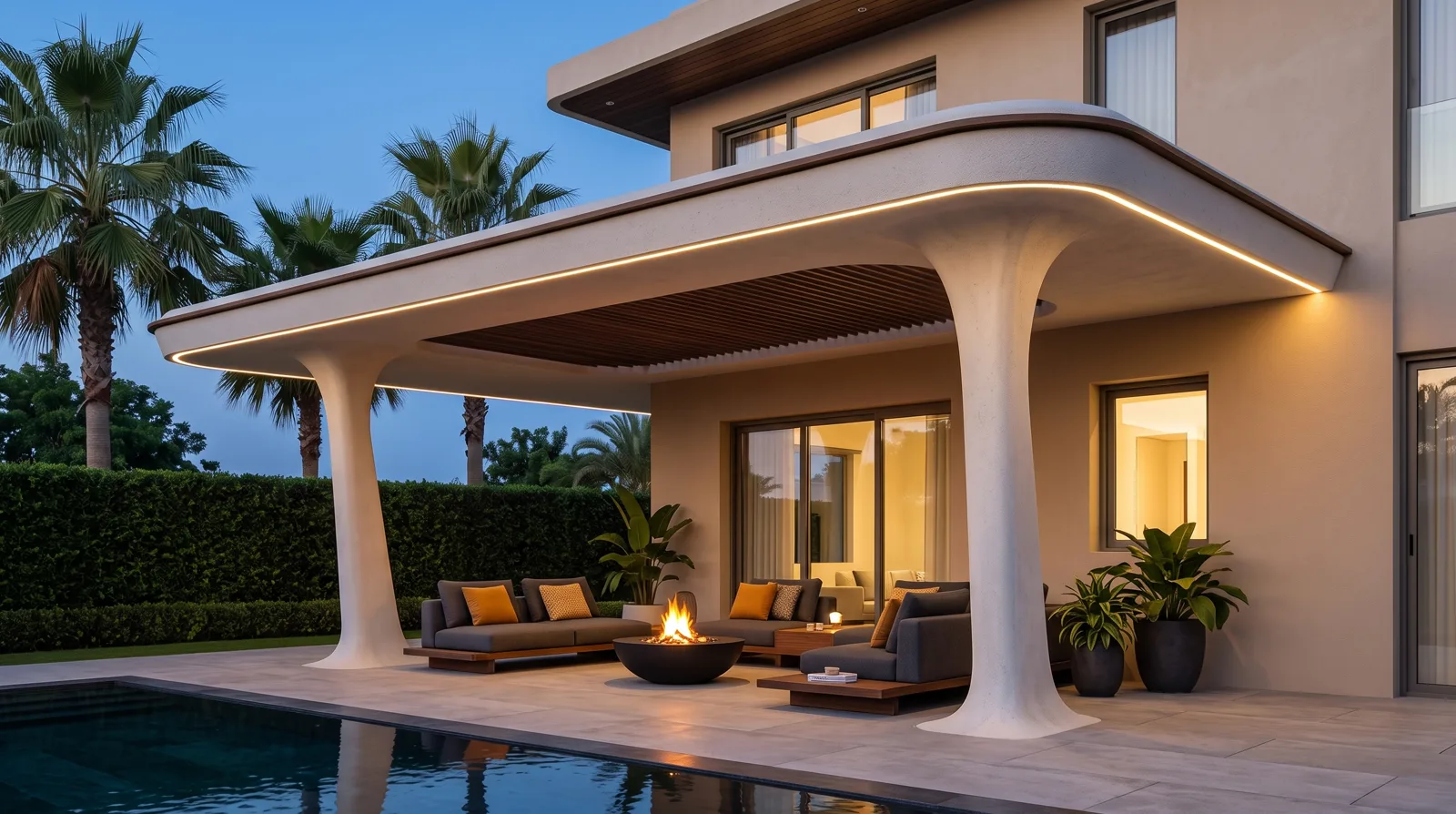

A sculptural white canopy growing straight out of a villa wall over a dusk fire-bowl lounge, lit rim glowing

EXTENSION

The roof plane runs off the house itself — a lean-to frame that turns the wall into shade, open-sided or part-screened.

HOUSE-ATTACHED · OPEN SIDES

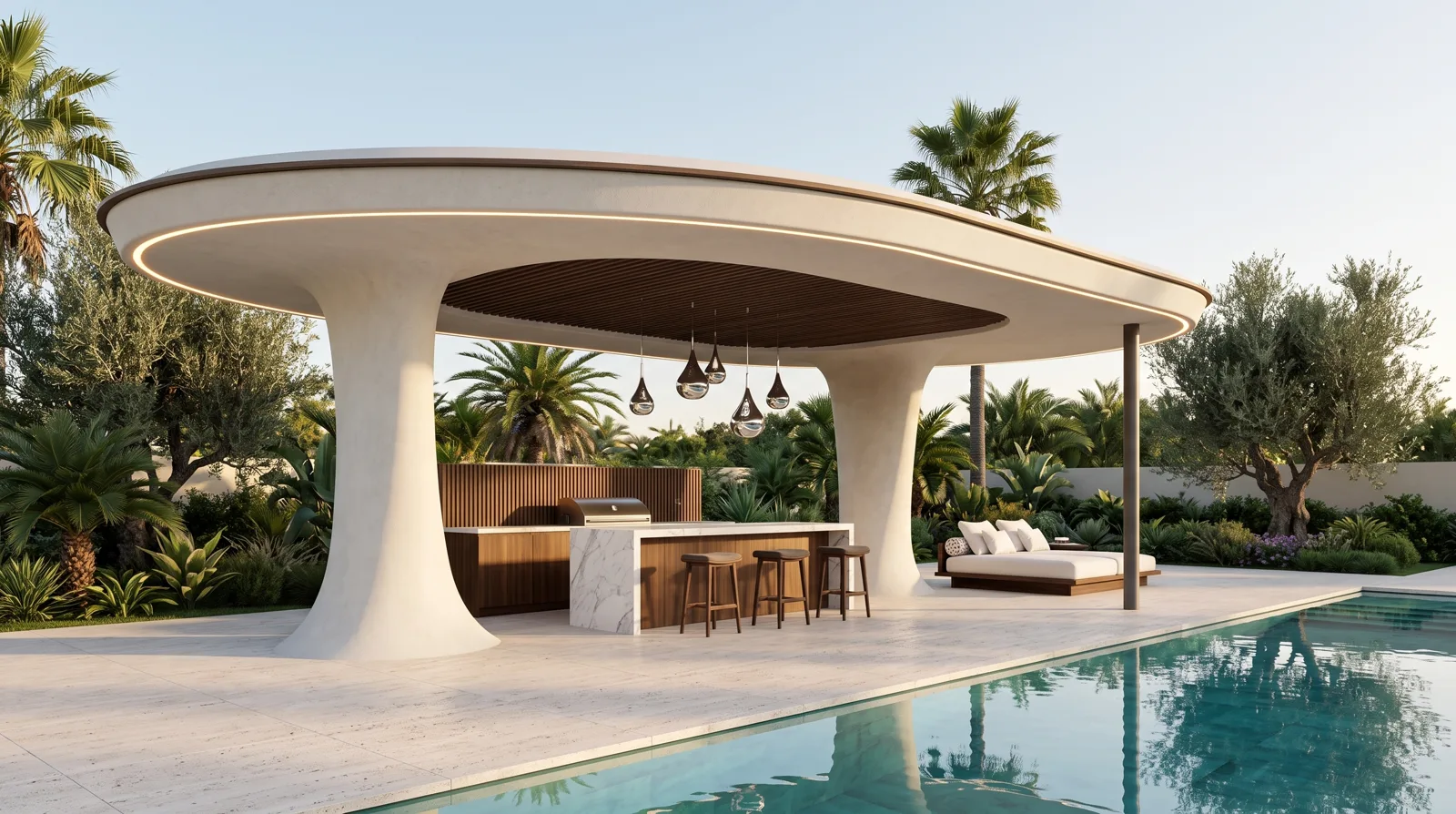

A free-standing elliptical white canopy on sculpted columns over a marble bar and daybed beside a pool

FREE-STANDING

Posts carry the roof alone — an independent object in the landscape: outdoor kitchen, poolside canopy, rooftop room.

SELF-SUPPORTING · ALL SIDES OPEN

THE SYSTEM

TWO TIERS, ONE RECORD

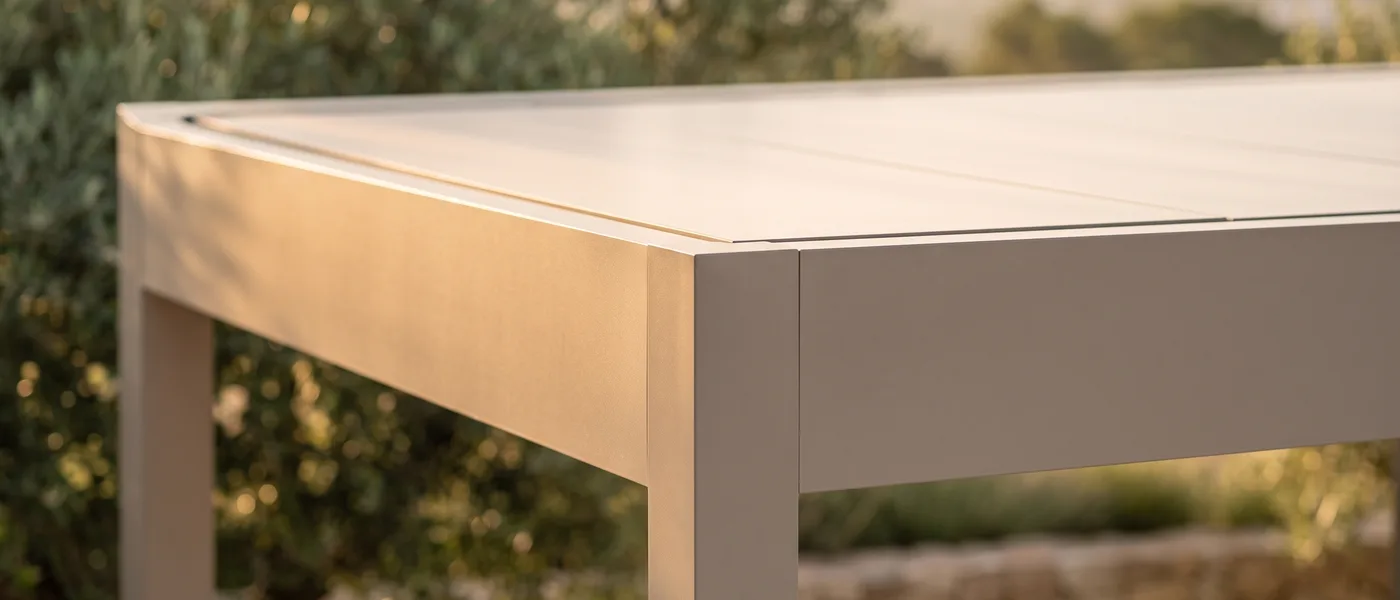

Solid roof plane meeting the fascia and post corner
MECHANISM
FIXED, INSULATED SOLID ROOF ON A STEEL FRAME — THE FOUR-SEASON ROOM
ROOF SURFACE
4 MM ALUMINUM COMPOSITE (ACM)
AS BUILT — STANDARD
4 × 2 × 1/8 IN + 4 × 4 × 1/8 IN STEEL TUBE · HOT-DIP GALVANIZED · POWDER-COATED · CONCEALED DRAINAGE
AS ENGINEERED — PROJECT SCALE · 2026 COLLECTION P.14
COLUMN 8 × 8 × 1/4 IN TUBE · ASTM A500 GR.C — BASE PLATE 1 IN ASTM A36 · HOT-DIP GALVANIZED — ANCHOR BOLTS (4) Ø1 IN ASTM F1554 GR.55 · 12 IN EMBED — NUTS + WASHERS ASTM A563 HEAVY HEX · HARDENED — STIFFENERS 3/8 IN ASTM A36 GUSSETS, WELDED — FOOTING ACI 318 · CAST-IN-PLACE · MIN 4,000 PSI
ENGINEERING NOTES

FINAL FOOTING DIMENSIONS AND REINFORCEMENT BY A LICENSED PROFESSIONAL ENGINEER, SITE-SPECIFIC · WELDING AWS D1.1 · DESIGN AISC 360 · GALVANIZING ASTM A123

SURFACE — COIL-COATED ACM

THE COLOUR REGISTER

TWO MANUFACTURERS' SYSTEMS — NEVER MERGED
NBA 027 Antracite Grey SOLIDNATURALBOND — ASAŞ
COLOUR ACCURACY

SCREEN-INDICATIVE SWATCHES — CONFIRM AGAINST PHYSICAL SAMPLE · FRAME FINISH — POWDER-COATED, COLOUR SPECIFIED PER PROJECT · PHYSICAL SAMPLE BEFORE FINAL APPROVAL

PANEL SPECIFICATION

PANEL: NATURALBOND 3030 — 0.30 MM EN AW-3105/H46 SKINS · 4 MM TOTAL · KYNAR 500 HDP 20+5 µM (SUPPLIER DATASHEET)

SOLID — 18
  • NBA 004Pure White
  • NBA 003Cream White
  • NBA 007Ultramarine Blue
  • NBA 023Graphite Grey
  • NBA 005Graphite Black
  • NBA 008Red Brown
  • NBA 006Traffic Red
  • NBA 009Orange
  • NBA 014Moss Green
  • NBA 027Antracite Grey
  • NBA 073Platinium Grey
  • NBA 076Grey Beige
  • NBA 072Soil Brown
  • NBA 012Rape Yellow
  • NBA 074Smoked Grey
  • NBA 077Dark Grey Beige
  • NBA 079Quartz Grey
  • NBA 078Jet Black
WOOD — 7
  • NBA 024Kiefer Line Wood
  • NBA 016Golden Oak Line Wood
  • NBA 026Teak
  • NBA 025African Teak
  • NBA 015Golden Oak Fine Wood
  • NBA 018Nussbaum Fine Wood
  • NBA 019Mahogany
METALLIC — 3
  • NBA 001Silver
  • NBA 002Lys Bronze
  • NBA 010Metallic Dark Grey
SOLID — 20
  • S 100Pure White
  • N 100Nano White*
  • S 9016Traffic White
  • S 9018Dirty White
  • S 9001Cream White
  • S 110Cream
  • 1014Ivory
  • S 175Sand
  • S 1019Milk Brown
  • S 190Soil
  • S 170Dark Brown
  • S 150Dark Blue
  • S 155Prussian Blue
  • S 5020Ocean Blue
  • S 160Black
  • S 156Mat Black
  • S 140Burgundy
  • S 130Red*
  • S 120Orange*
  • S 1023Yellow*
SHADES OF GREY — 11
  • S 7044Silk
  • S 7021Black Grey
  • S 7016Anthracite
  • S 7022Umbra
  • S 7015Slate
  • S 7010Tarpaulin
  • S 7030Stone
  • S 7012Basalt
  • S 7039Quartz
  • S 7036Platinium
  • S 7043Traffic Grey
METALLIC — 13
  • S 500Silver
  • S 9007Metallic Aluminium Grey
  • S 520Dark Grey Metallic
  • S 7048Gri Metalik
  • S 540Copper
  • S 590Metallic Cobalt Grey
  • S 530Yellow Metallic
  • S 580Bronze Metallic
  • S 585Dark Bronze
  • S 510Champaign
  • S 570Azur Blue
  • S 890Brocades Black
  • S 900Brocades White
PRISMATIC — 1
  • S 17316Prismatic White
TIMBER — 9
  • S 875Dark Oak
  • S 865Teak
  • S 834Light Teak
  • S 885Oak
  • S 90295Afromozya Teak*
  • S 602Prestige Walnut
  • S 601Prestige Oak
  • S 603Prestige Teak
  • S 604Prestige Atlantic
SPECIAL EFFECTS — 6
  • ST 836Light Concrete
  • ST 837Basalt Stone
  • ST 841Corten Steel
  • S 855Black Granite
  • S 820Marble
  • S 90268Stone Effect*
FOOTNOTES, AS PRINTED

* AS PRINTED — N 100: NANO (ANTI-GRAFFITI) COATING ON SOLID & METALLIC · S 130 / S 120 / S 1023: LACQUER OVER PVDF · S 90295 / S 90268: TEX-COVER FILM TRANSFER

THE FOUR-SEASON ROOM

GALLERY

PROJECT PHOTOGRAPHY

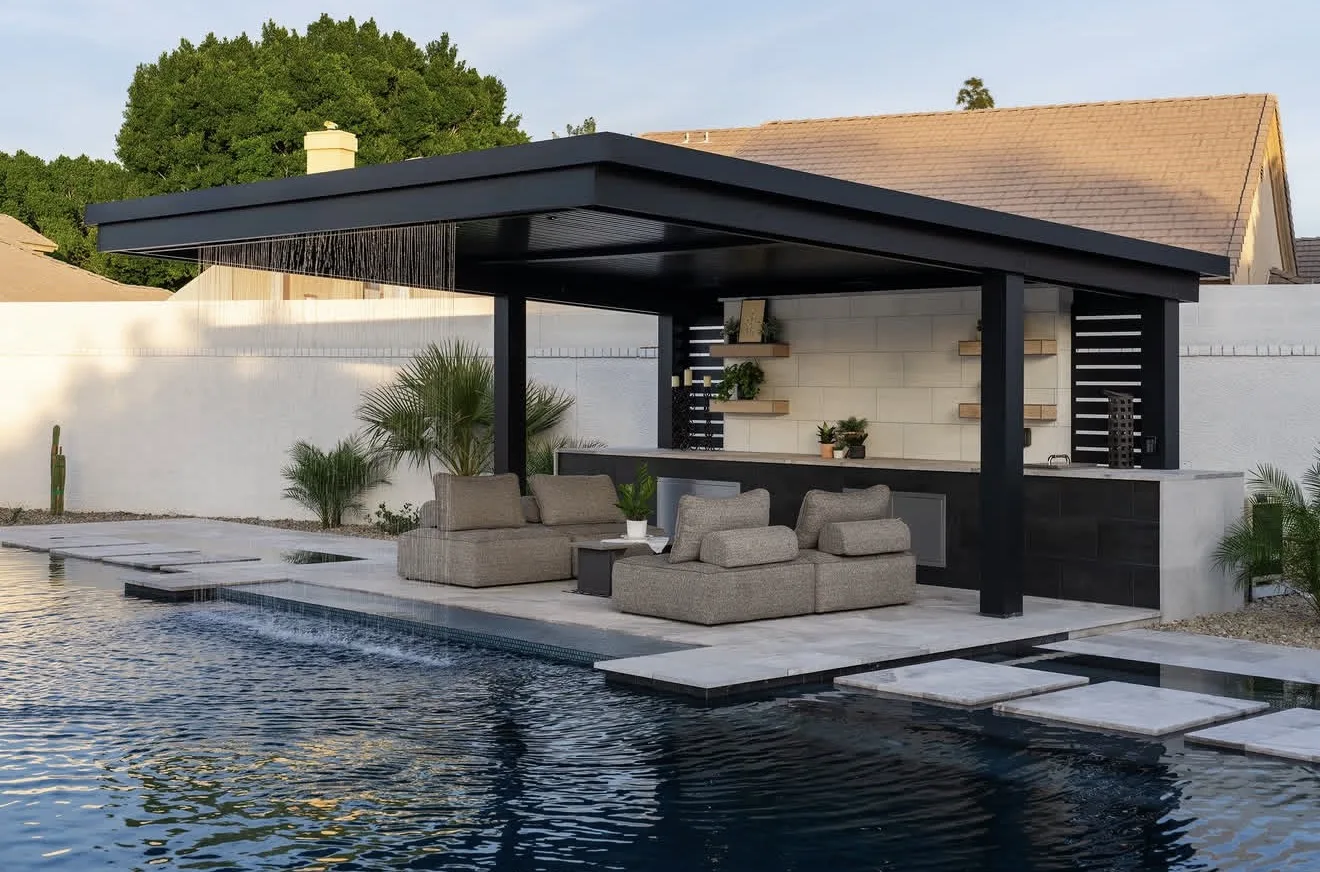

Black-framed hard top pergola at the edge of a pool, solid roof over a built-in kitchen and lounge seating — photograph
AT THE WATER — PHOTOGRAPH

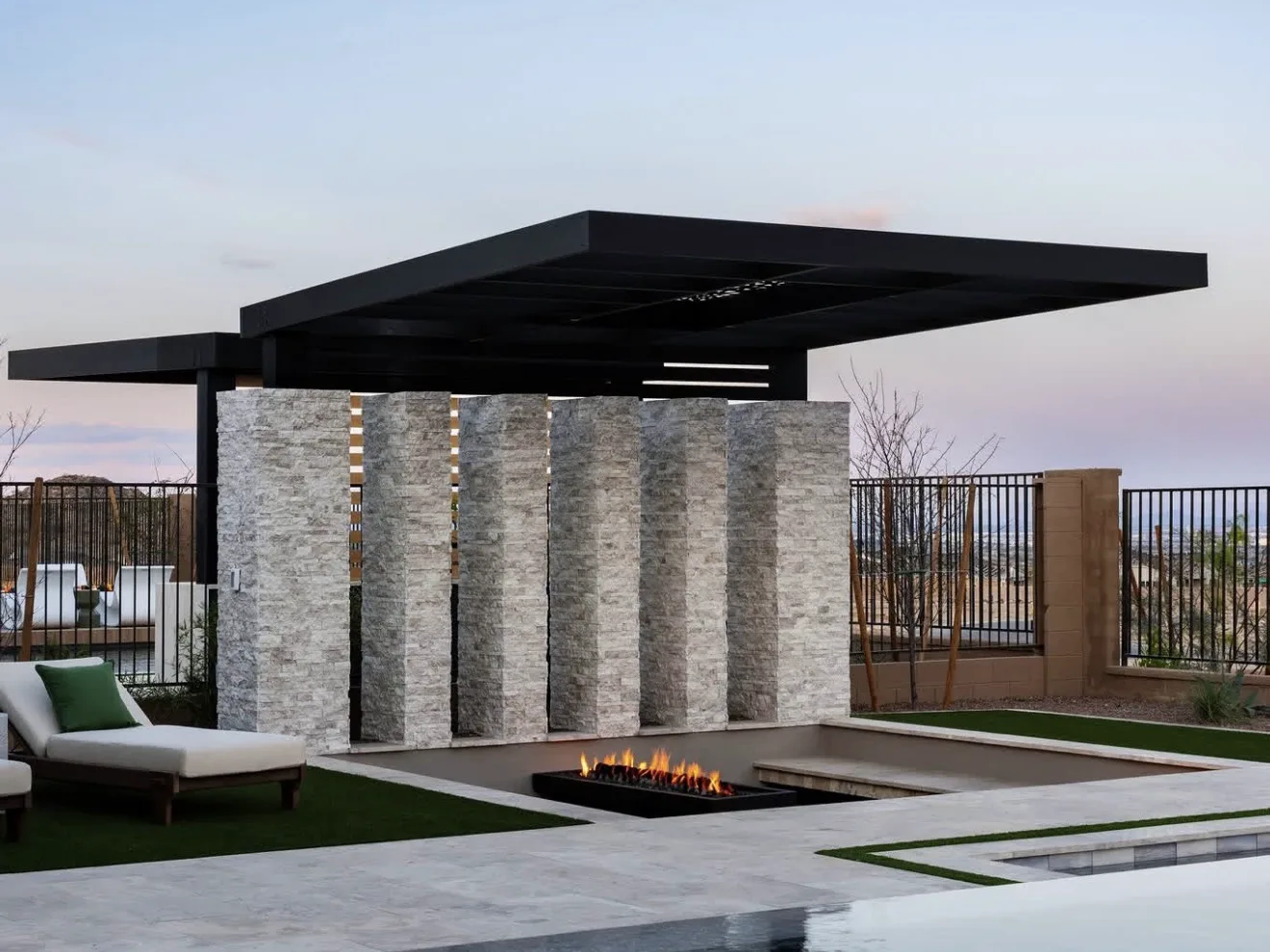

Hard top roof carried on a stacked stone wall with lit vertical slots, fire trough and pool below at dusk — photograph
THE STONE WALL — PHOTOGRAPH

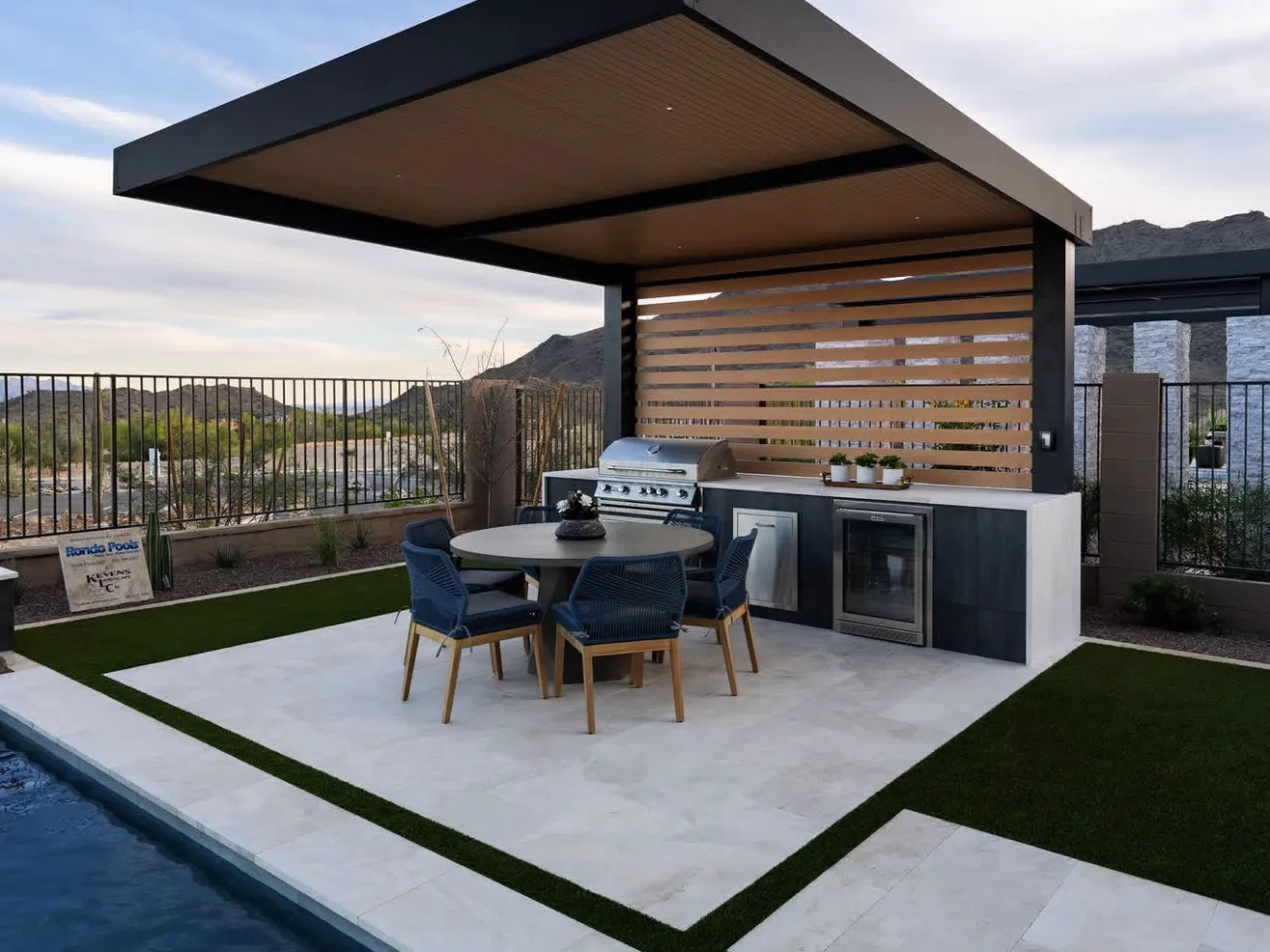

Hard top with a warm timber soffit over an outdoor kitchen and dining table, mountains beyond — photograph
TIMBER SOFFIT — PHOTOGRAPH

THREE OF FIVE FRAMES. THE FULL REGISTER — THREE INSTALLATIONS — IS ON THE GALLERY.

THE HARD TOP GALLERY
CLOSE THE ROOM

SIDE SYSTEMS

EVERY ROOF TAKES THEM
Sliding glass panels mid-travel across a pergola bay, one panel overlapping the next above a flush floor track SLIDING GLASSFRAMED PANELS THAT SLIDE THE ROOM CLOSEDOPEN A guillotine glass pane risen halfway in a pergola bay, open air above its top edge GUILLOTINE GLASSVERTICAL GLASS THAT RISES ON COMMANDOPEN A zip screen lowered in sealed side channels beside an open bay, warm light glowing through the mesh ZIP SCREENSTENSIONED SCREENS IN SEALED CHANNELSOPEN

CONTROL — MOTORIZED · SMART-HOME COMPATIBLE · ALL SIX UPGRADES, AS PRINTED →

FOUR WAYS TO HOLD THE SKY

THE FLAGSHIP

NIRVANA

A DAY, HELD — SCROLL AND THE CANOPY TAKES THE EVENING

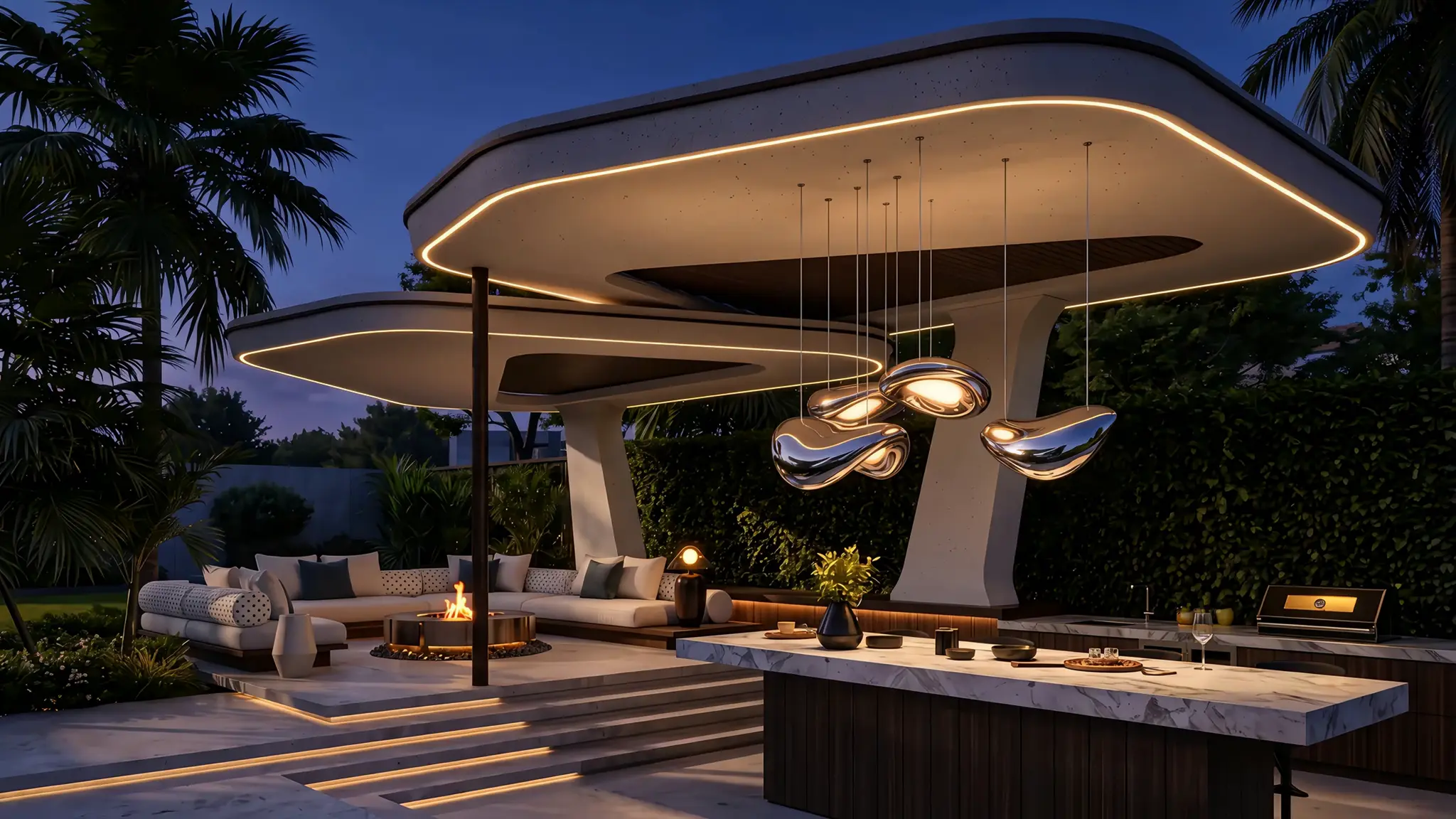

NIRVANA canopy family at night — LED rim, chrome pendants and fire bowl carrying the scene.

SPECIFIED PER PROJECT · DRAWN BEFORE BUILT
