LOUVERED ROOF SYSTEM

VENTO

Control light, air, and the open sky.

Discover the system

Control light, air, and the open sky.

Motorized aluminum louvers adjust sunlight, shade and airflow above an open-air terrace.

Movement

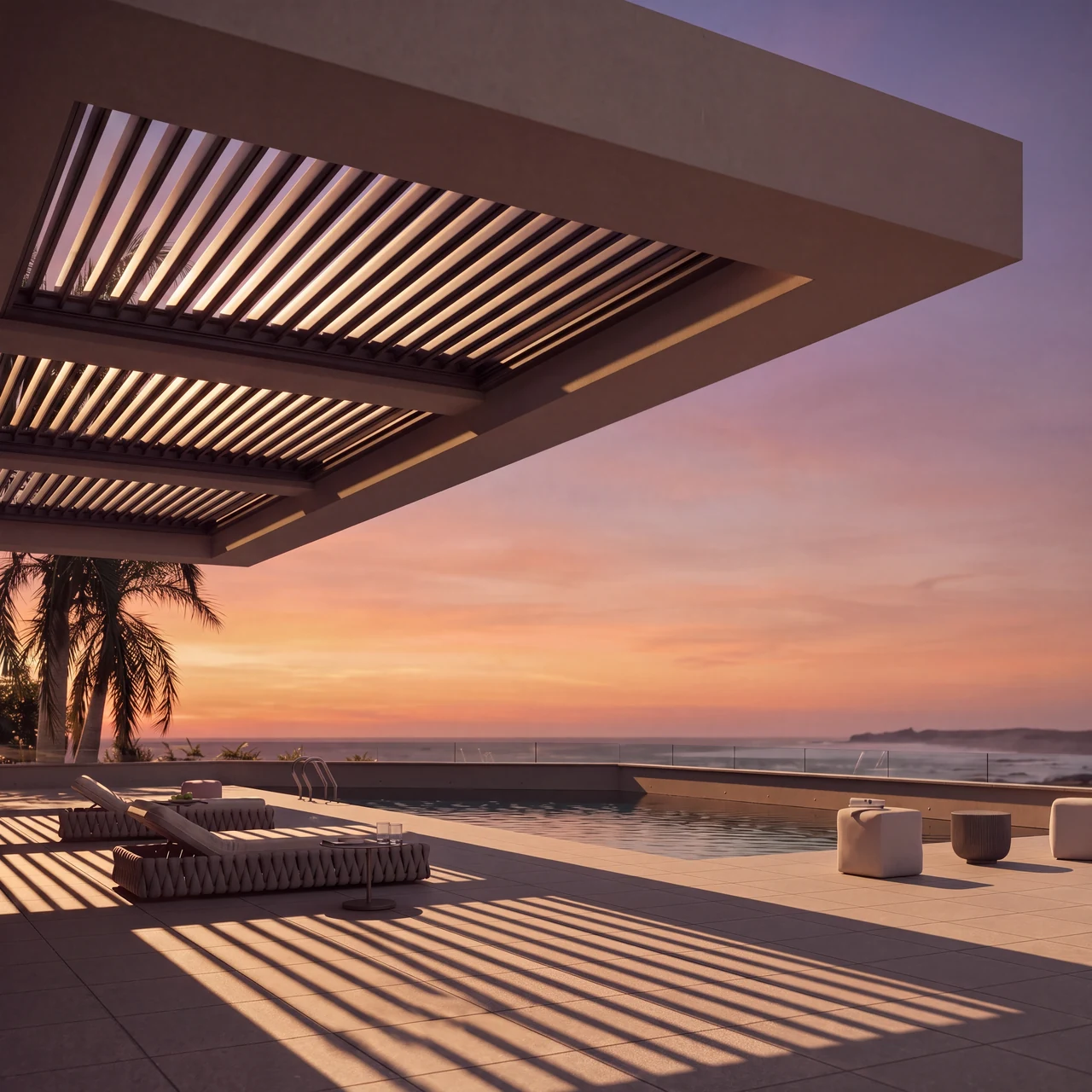

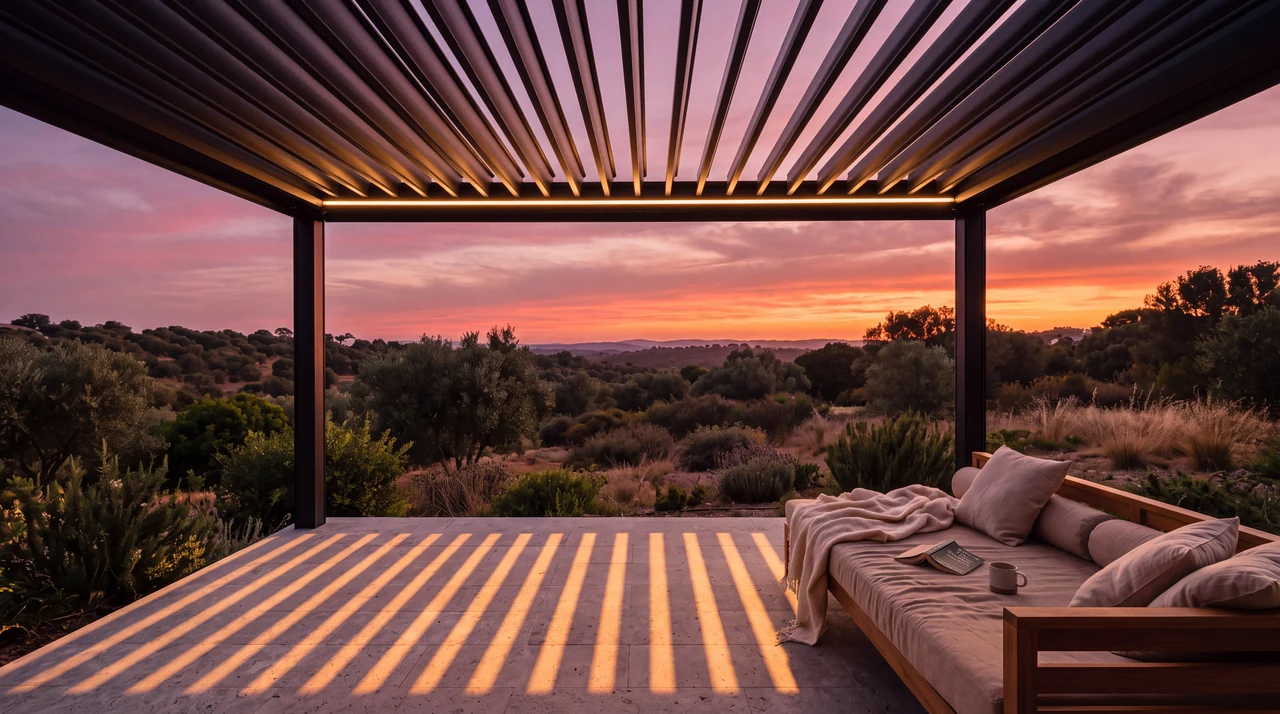

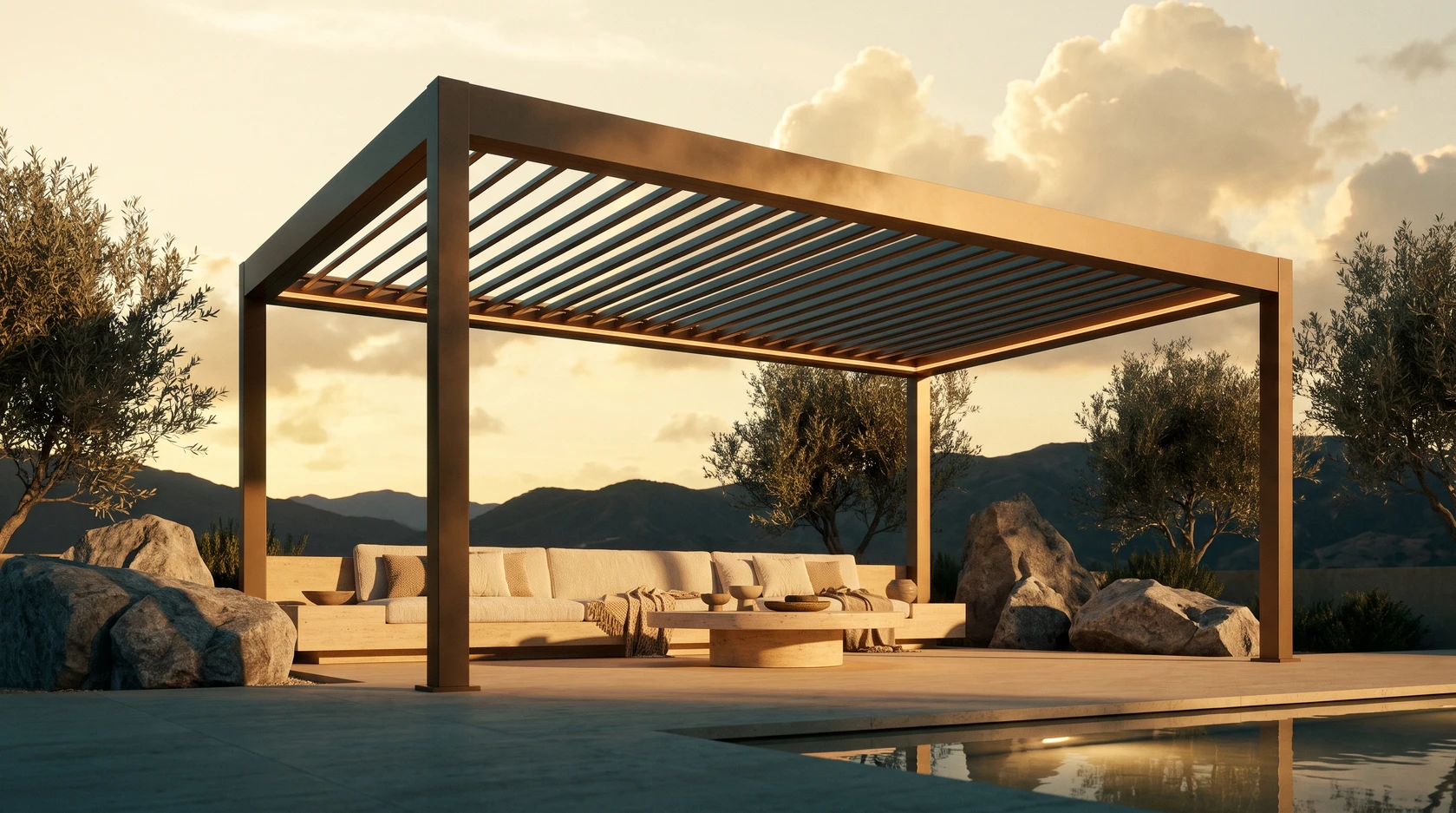

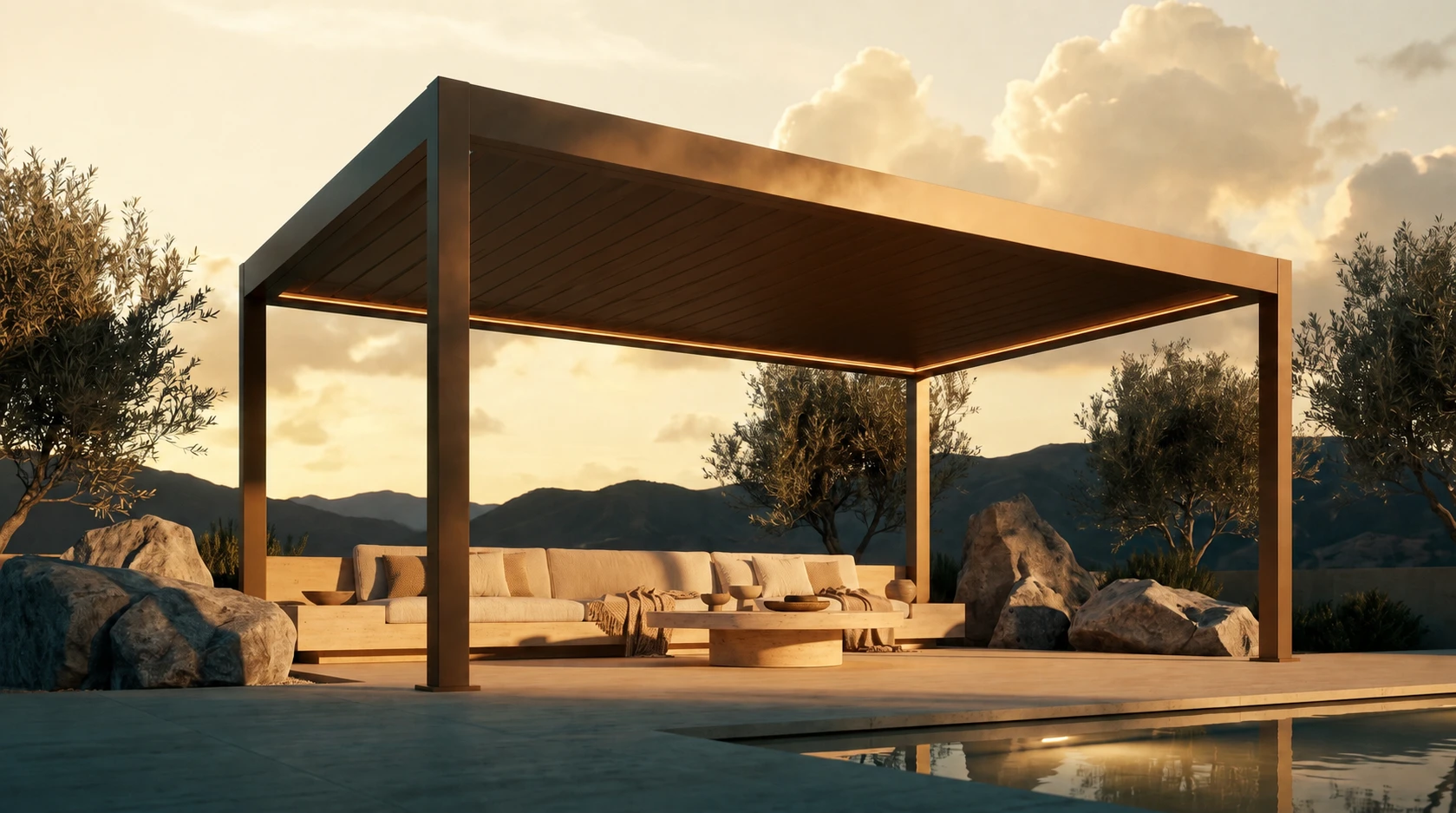

Light through rotating louvers

VENTO changes the roof opening by rotating aluminum louvers within the overhead frame. Their angle adjusts how much daylight enters and how air moves through the terrace. The louver arrangement remains part of the roof composition in both open and closed positions.

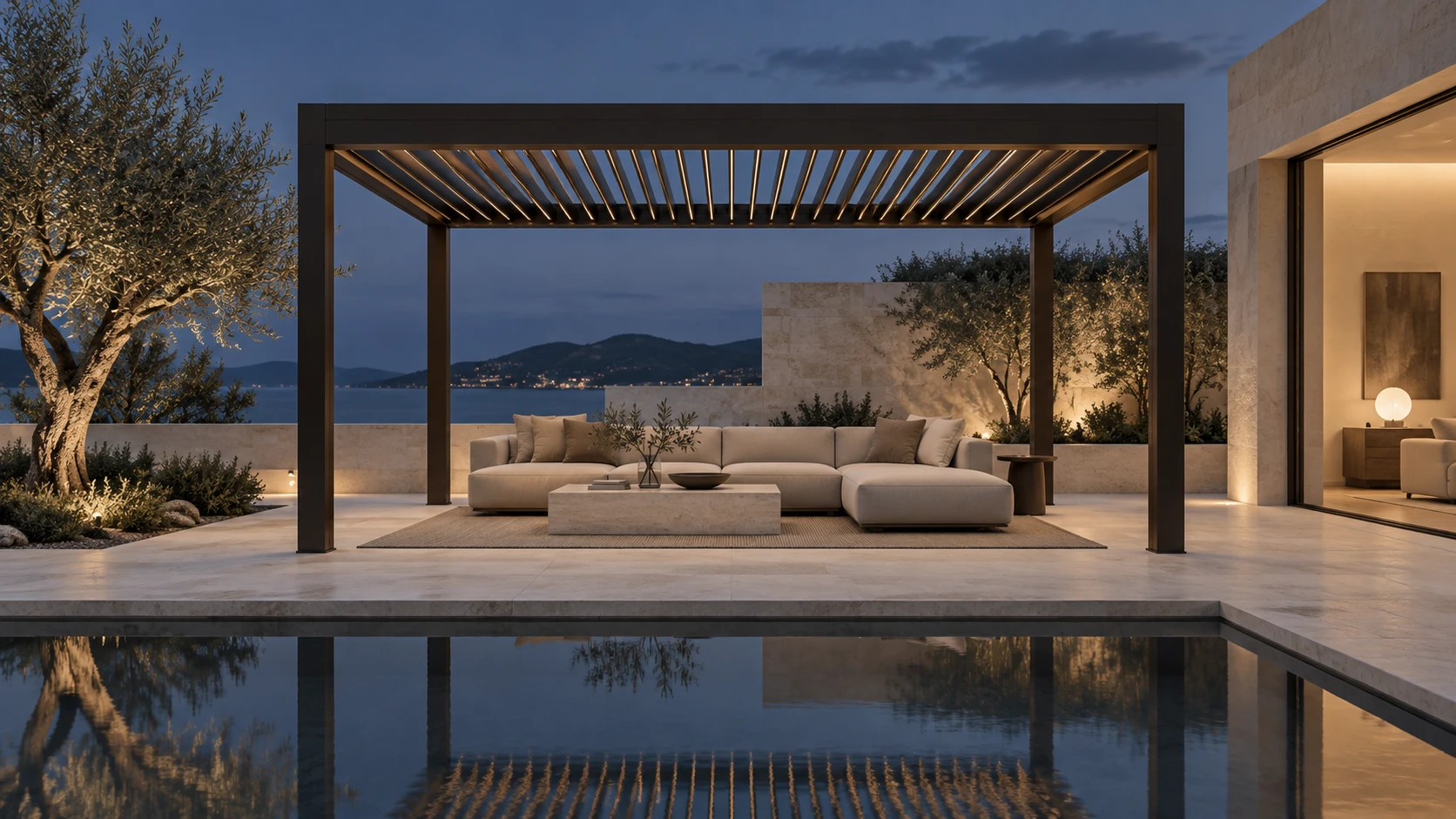

VENTO architectural concept visualization. A dark bronze louvered pergola frames a quiet courtyard, still water and a distant shoreline at blue hour.
Courtyard at blue hour

Architecture

A roof composed with the terrace

The perimeter frame, supports and louver direction establish the overhead rhythm. Module size is developed around the terrace and adjacent construction, while finish selections connect the roof to the building. Lighting and controls are coordinated with the selected model and the intended use below.

Coordination

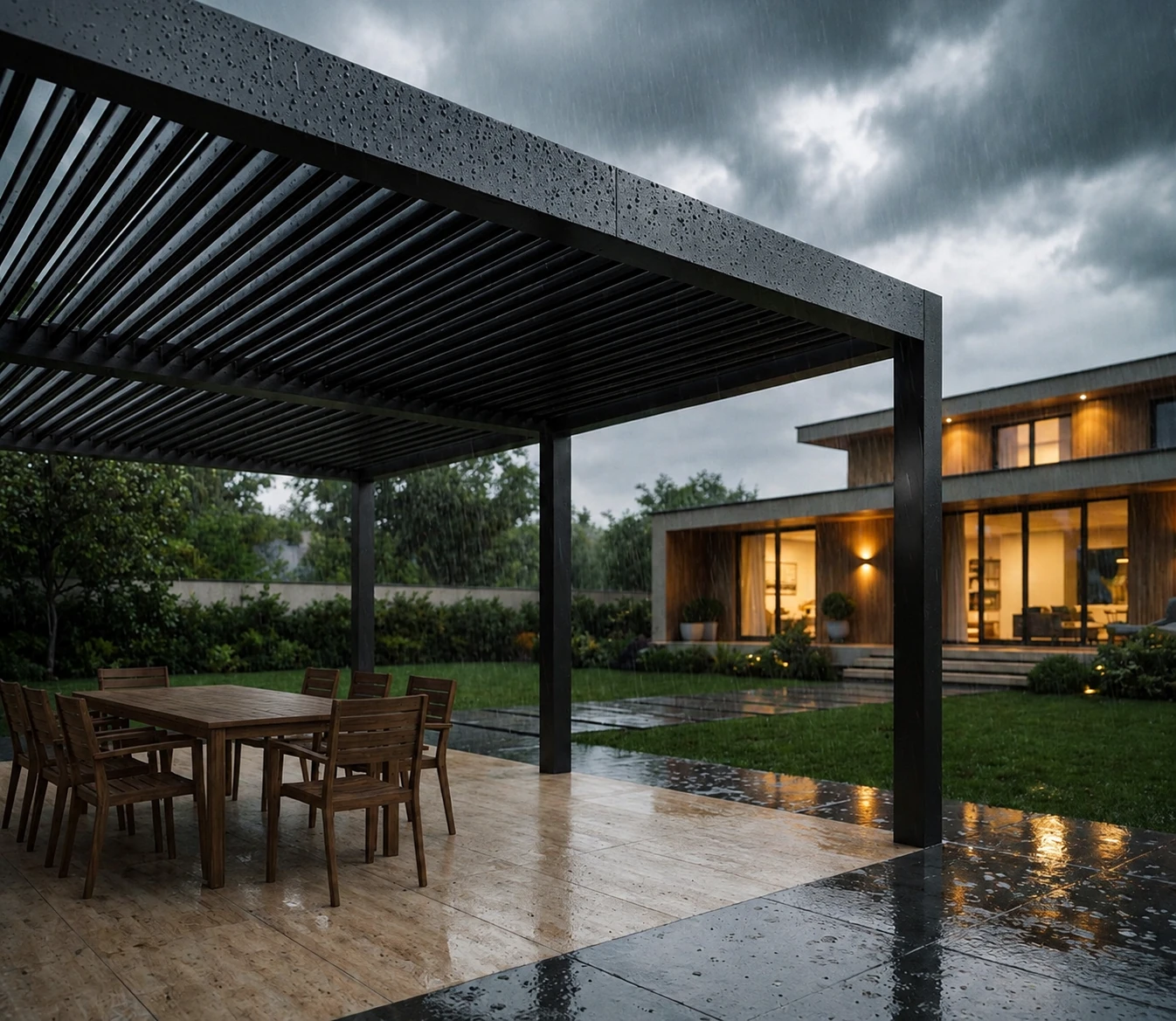

Follow the water path

Drainage is considered with the roof layout, supports and connection to the building. Collection and discharge points need to work with the site rather than being left to the final installation. Loads, module dimensions and the operating package follow the approved project drawings.

A place for VENTO

Considered for your space.

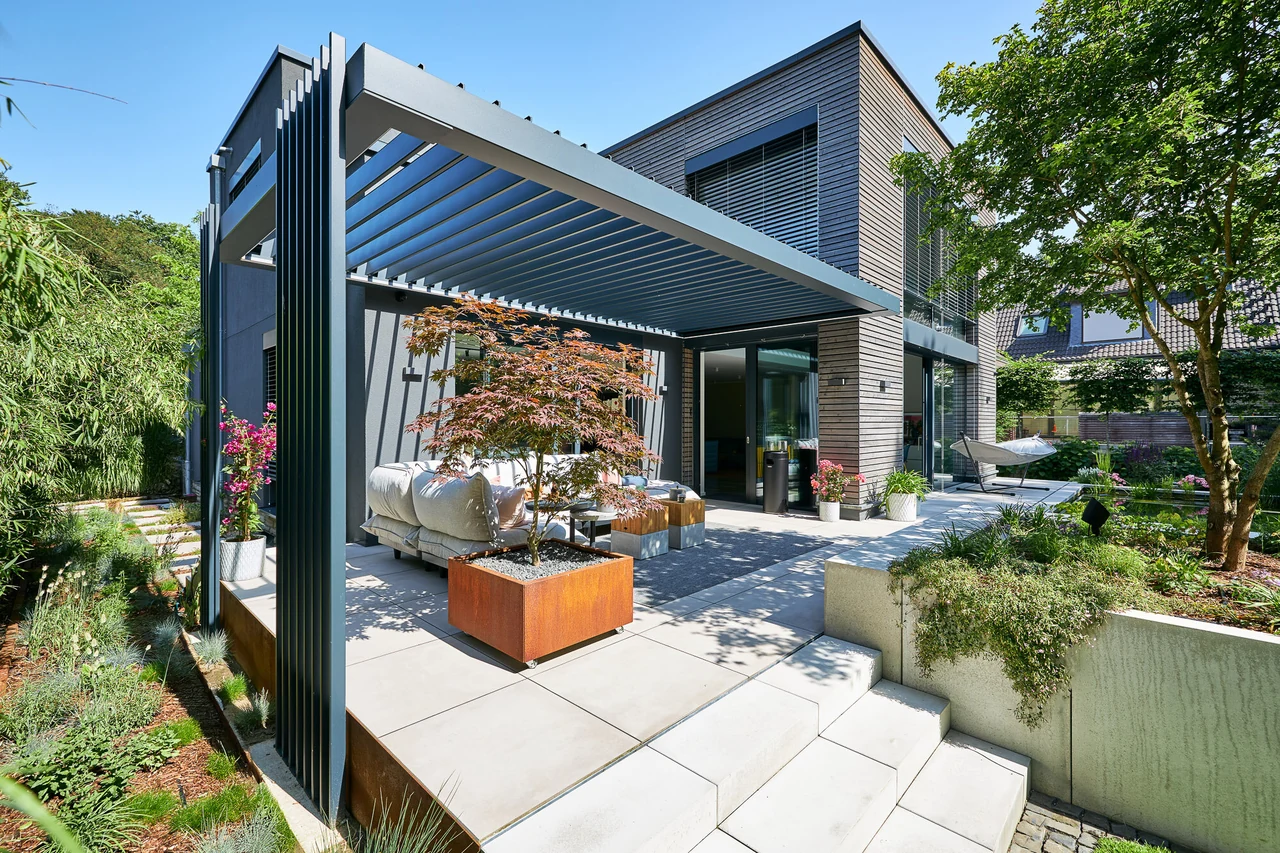

  • Open-air terraces

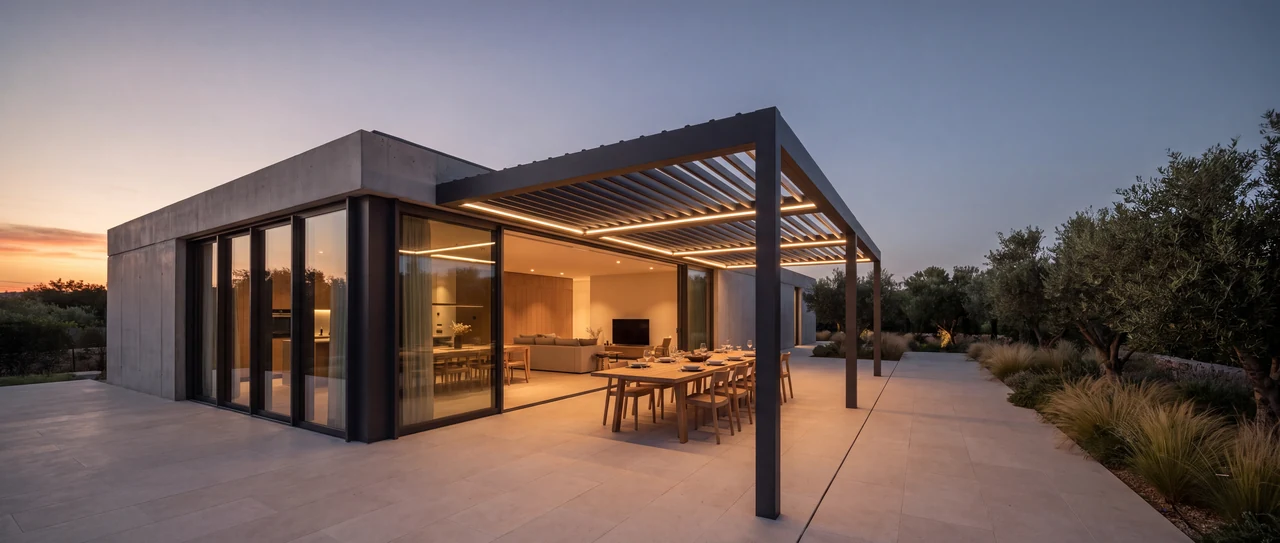

  • Outdoor dining
  • Garden seating

A closer look

Form & detail.

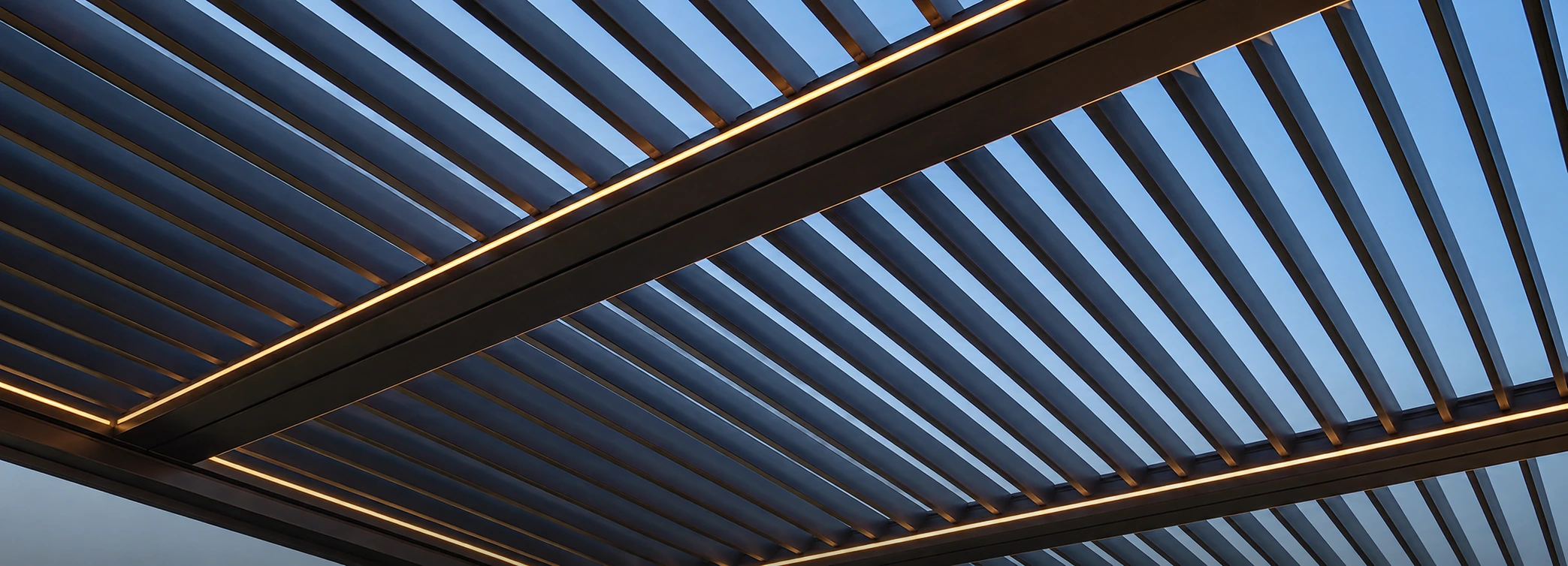

The finer details

Precisely considered.

Dimensions, finishes and configuration are coordinated around your project.

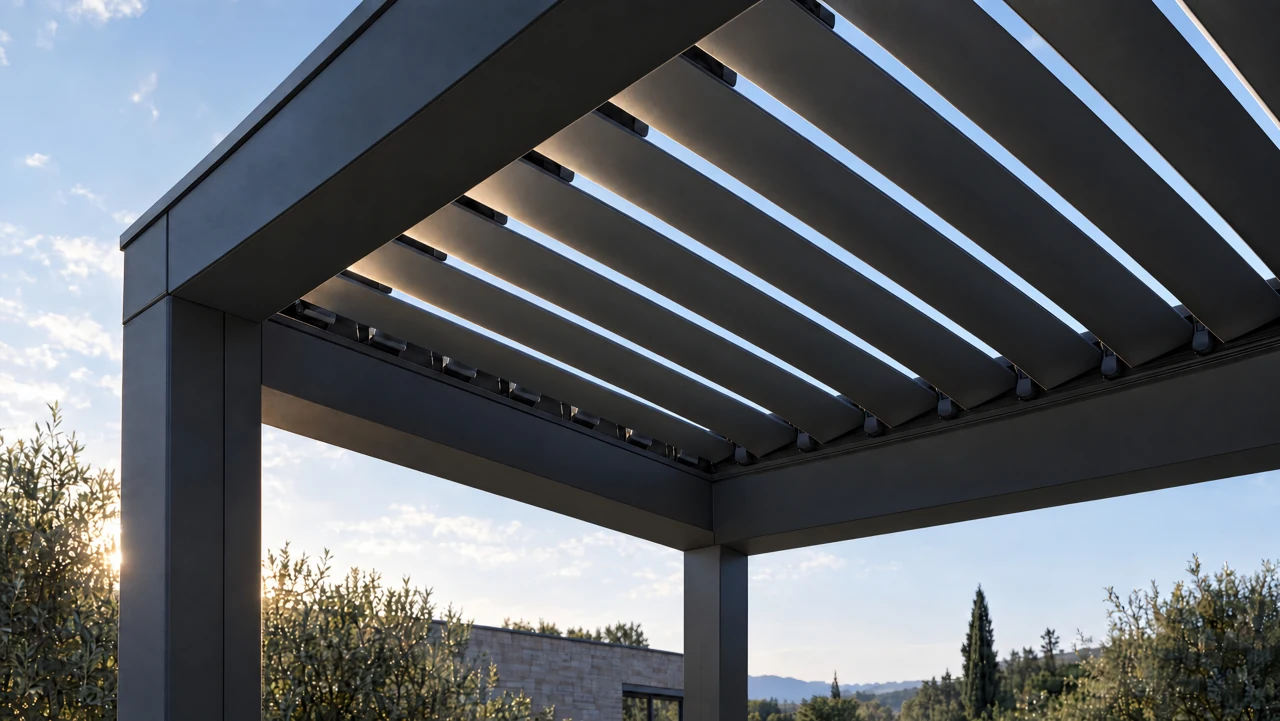

Movement
Motorized rotating louvers.
Project fit
Layouts, drainage, lighting and controls follow the selected model and approved project.
Project coordination

Keep the details

Your project, in detail.

Explore the system drawings and available configurations in the product documentation.

Project & technical notes

Specification requirements

Sizes, spans, loads, thermal values and applicable glazing, motors or fabrics require current supplier data and approved project documents.

Catalog clarifications

Affected model catalogs include clarification notes for conflicting source dimensions, translations or component codes. Confirm those items with the supplier before specification or ordering. Source references to certificate file 25 are outside the supplied catalog set 1–24 and remain unverified.

Project conditions

Final appearance and performance depend on selections, site conditions, engineering, codes, permits, substrates, installation, supplier data, maintenance and the signed agreement.

Warranty and service

Coverage follows the selected system, components, approved scope, installation conditions and signed agreement. Separate components may have different coverage; the final project warranty governs.

Included scope

Permits, engineering, stamped calculations, surveys, concrete, electrical work, additional waterproofing, drainage connections, cranes, lifts and work by others are included only when expressly listed in the written proposal.
