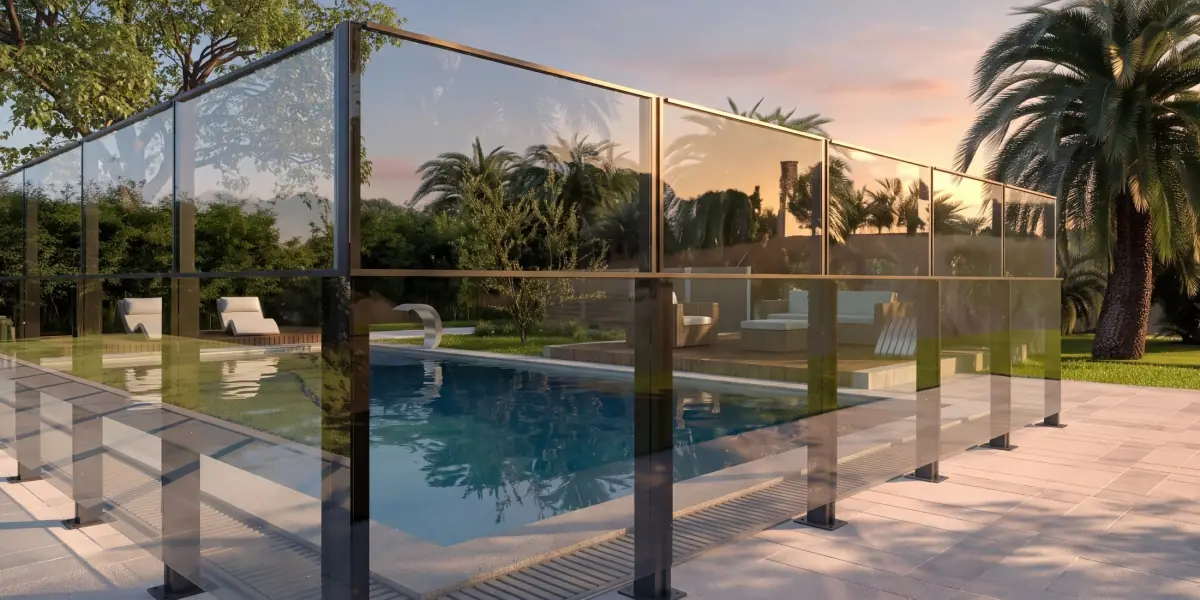

SCALA in LATVERA Golden Dusk lighting; AI concept visualization based on the original catalog image.

GUILLOTINE GLASS SYSTEM

SCALA

Vertical motion. Effortless enclosure.

Discover the system

Vertical motion. Effortless enclosure.

Motorized glass panels travel vertically within the frame, enclosing an open edge while preserving floor area.

Movement

Glass that travels vertically

SCALA moves glass panels vertically within side framing. Opening the upper edge avoids a swinging leaf or a sideways stack beside the opening. The approved panel arrangement determines the clear opening and the portion of glass that remains when the system is open.

Configuration

Plan the opening around the room

Panel count, glazing and the required opening are selected together. The vertical arrangement can be considered where seating or other uses sit close to the enclosure. It remains important to distinguish ventilation through an adjustable edge from a doorway intended for people to pass through.

Operation

Controls are part of the system

The drive, controls and any sensors are coordinated with the chosen configuration. Safe operation, cleaning access and servicing are considered alongside the glass and framing. Wind criteria and the relevant barrier or enclosure requirements are confirmed for the particular system and installation.

A place for SCALA

Considered for your space.

  • Adjustable glazed edges
  • Terrace enclosures
  • Hospitality perimeter seating

The finer details

Precisely considered.

Dimensions, finishes and configuration are coordinated around your project.

Movement
Motorized vertical panel travel within the frame.
Configuration
Panel count, glazing and clear opening confirmed for the approved system and project.
Controls
Controls and sensors coordinated with the selected system.
Safety
Wind criteria, code and safety provisions confirmed system by system.

Keep the details

Your project, in detail.

Explore the system drawings and available configurations in the product documentation.

Project & technical notes

Specification requirements

Sizes, loads, glazing, wind or water ratings, safety provisions and applicable controls require current supplier data and approved project documents.

Catalog clarifications

Affected model catalogs include clarification notes for conflicting source dimensions, translations or component codes. Confirm those items with the supplier before specification or ordering. Source references to certificate file 25 are outside the supplied catalog set 1–24 and remain unverified.

Project conditions

Final appearance and performance depend on selections, site conditions, engineering, codes, permits, substrates, installation, supplier data, maintenance and the signed agreement.

Warranty and service

Coverage follows the selected system, components, approved scope, installation conditions and signed agreement. Separate components may have different coverage; the final project warranty governs.

Included scope

Permits, engineering, stamped calculations, surveys, concrete, electrical work, additional waterproofing, drainage connections, cranes, lifts and work by others are included only when expressly listed in the written proposal.
