RWT95

Insulated Window and Door System

Discover the system

Insulated Window and Door System

A deeper insulated joinery family with 95 mm frames, 105 mm sashes and a 54 mm thermal barrier.

Depth

A substantial profile assembly

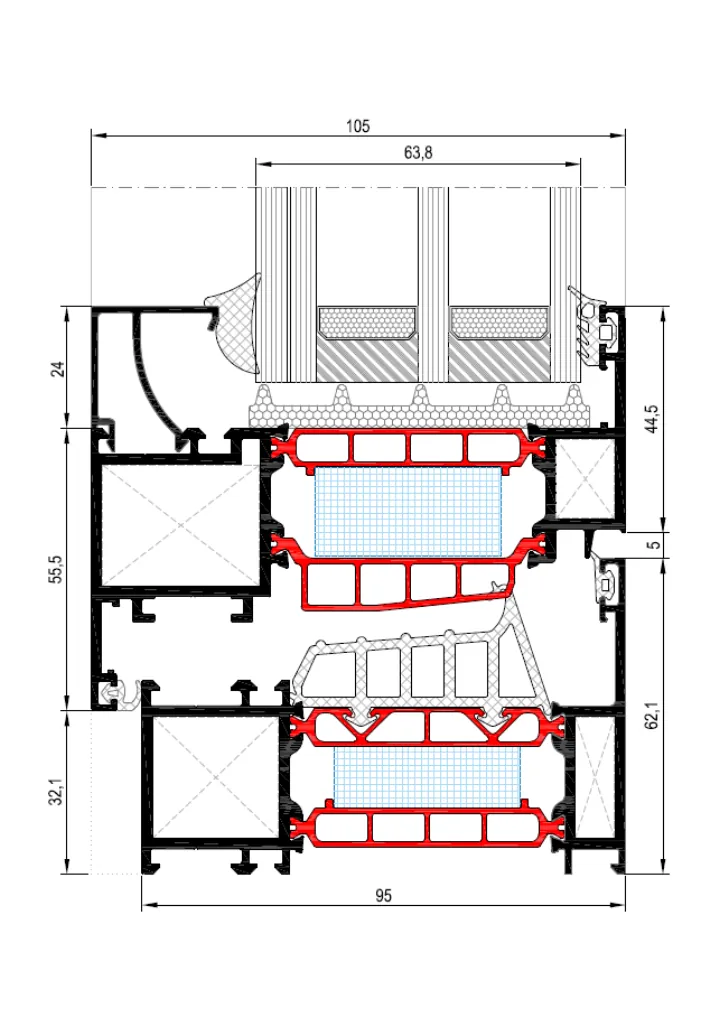

RWT95 is distinguished by its deeper profile assembly. The supplier lists a 95 mm frame and 105 mm sash, paired with a 54 mm thermal barrier. These are component dimensions that should be considered with the wall reveal and the selected glazing rather than treated as visible face widths.

Glazing

Coordinate glass with the selected section

The deeper family provides a different glazing and profile arrangement from shallower RWT systems. The selected glass build-up must still match the documented section, seals and fittings. The design should resolve opening clearances and the weight carried by the actual hardware without inferring capacity from an image.

Performance

Document the complete configuration

The supplier presents RWT95 within its insulated joinery range. Any project target for thermal performance needs evidence for the actual glass, frame, sash and installation. Broad descriptions of energy-efficient use should not substitute for a project-specific calculation or a certification covering the selected completed assembly.

A place for RWT95

Considered for your space.

  • Door
  • Window
  • Inward Opening
  • Outward Opening
  • Bottom Hung
  • Tilt & Turn Opening

A closer look

Form & detail.

The finer details

Precisely considered.

Dimensions, finishes and configuration are coordinated around your project.

Frame Depth
95 mm
Vent Depth
105 mm
Profile Thickness
2 mm
Max. Glass Thickness
85mm
Thermal Insulation Bar
54 mm

Keep the details

Your project, in detail.

Explore the system drawings and available configurations in the product documentation.

Project & technical notes

Specification requirements

Sizes, spans, loads, thermal values and applicable glazing, motors or fabrics require current supplier data and approved project documents.

Project conditions

Final appearance and performance depend on selections, site conditions, engineering, codes, permits, substrates, installation, supplier data, maintenance and the signed agreement.

Warranty and service

Coverage follows the selected system, components, approved scope, installation conditions and signed agreement. Separate components may have different coverage; the final project warranty governs.

Included scope

Permits, engineering, stamped calculations, surveys, concrete, electrical work, additional waterproofing, drainage connections, cranes, lifts and work by others are included only when expressly listed in the written proposal.
