RST162

Insulated Lift & Slide System

Discover the system

Insulated Lift & Slide System

An insulated lift-and-slide system with narrow edge profiles and an EPDM foam insulation arrangement.

Movement

Lift-and-slide at the glazed opening

RST162 is designed around a lift-and-slide mechanism. The moving sash and its operating hardware should be selected as a complete arrangement, with a clear plan for panel overlap and passage. The mechanism remains distinct from a simple slider even when the closed facade appears similar.

Profile

Narrow edges within a deeper assembly

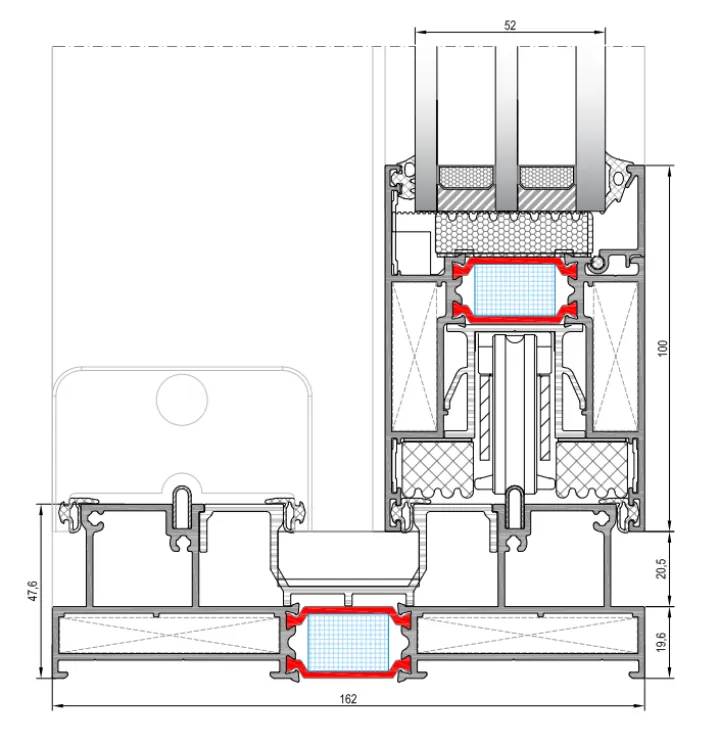

The supplier describes narrow edge profiles together with deeper frame arrangements and a 71 mm sash family. The visible edge and the overall frame depth are different dimensions. Their relationship should be resolved in section, particularly at the threshold and where the frame meets the surrounding wall.

Construction

A documented insulation arrangement

The system includes a 34 mm thermal barrier and an EPDM foam arrangement in the supplier's description. These belong to the internal assembly and cannot be verified from an architectural view. Glazing, seals and hardware should be specified from the current RST162 documentation for the selected configuration.

A place for RST162

Considered for your space.

  • Door
  • Window
  • Lift & Slide
  • 45’ Vent Combination
  • Vent with Glazing Bead
  • Mono Railed Frame
  • 3 Railed Frame

A closer look

Form & detail.

The finer details

Precisely considered.

Dimensions, finishes and configuration are coordinated around your project.

Frame Depth
min.162 / max. 253 mm
Vent Depth
71 mm
Profile Wall Thickness
1,8 mm
Glass Thickness
max. 52 mm
Thermal Insulation Bars
34 mm

Keep the details

Your project, in detail.

Explore the system drawings and available configurations in the product documentation.

Project & technical notes

Specification requirements

Sizes, spans, loads, thermal values and applicable glazing, motors or fabrics require current supplier data and approved project documents.

Project conditions

Final appearance and performance depend on selections, site conditions, engineering, codes, permits, substrates, installation, supplier data, maintenance and the signed agreement.

Warranty and service

Coverage follows the selected system, components, approved scope, installation conditions and signed agreement. Separate components may have different coverage; the final project warranty governs.

Included scope

Permits, engineering, stamped calculations, surveys, concrete, electrical work, additional waterproofing, drainage connections, cranes, lifts and work by others are included only when expressly listed in the written proposal.
