ASWM24

Outward Opening Joinery System with Insect Screen

Discover the system

Outward Opening Joinery System with Insect Screen

Outward-opening insulated joinery that brings an interior insect screen and integrated handle detail into the window assembly.

Opening

Outward movement, clear interior planning

ASWM24 is organized around outward-opening windows, including side-hung and top-hung arrangements. The sash moves beyond the interior face, so its relationship to the exterior reveal and nearby obstructions matters. Opening selection determines the visible hinge position and the way the window is used from inside.

Integration

A screen within the window design

An insect screen is positioned on the inside of the system, and the handle is integrated into the frame design. These are defining details of ASWM24 rather than separate decorative additions. Their placement should be considered with the interior reveal and the reach needed to operate the window.

Construction

A thermally separated profile assembly

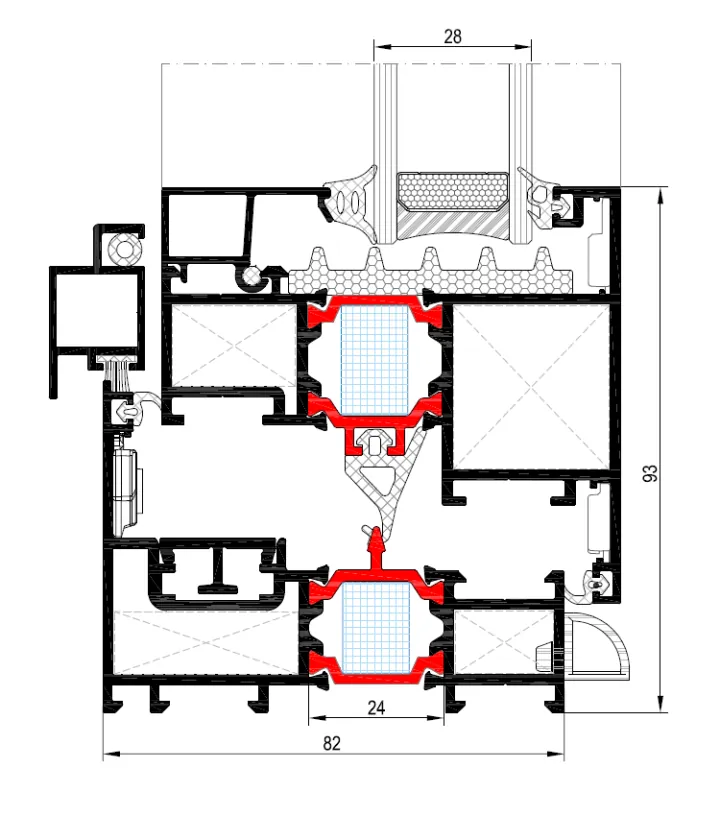

The supplier identifies a 24 mm thermal barrier and 82 mm frame and sash depths. Those dimensions describe the system components, not an installed performance result. Glazing, hardware, seals and the surrounding wall connection complete the specification for the selected outward-opening arrangement.

A place for ASWM24

Considered for your space.

  • Window
  • Side Hung Casement
  • Top Hung Awning

A closer look

Form & detail.

The finer details

Precisely considered.

Dimensions, finishes and configuration are coordinated around your project.

Frame Depth
82 mm
Vent Depth
82 mm
Profile Thickness
1,8 mm
Max. Glass Thickness
24~42 mm
Thermal Insulation Bar
24 mm

Keep the details

Your project, in detail.

Explore the system drawings and available configurations in the product documentation.

Project & technical notes

Specification requirements

Sizes, spans, loads, thermal values and applicable glazing, motors or fabrics require current supplier data and approved project documents.

Project conditions

Final appearance and performance depend on selections, site conditions, engineering, codes, permits, substrates, installation, supplier data, maintenance and the signed agreement.

Warranty and service

Coverage follows the selected system, components, approved scope, installation conditions and signed agreement. Separate components may have different coverage; the final project warranty governs.

Included scope

Permits, engineering, stamped calculations, surveys, concrete, electrical work, additional waterproofing, drainage connections, cranes, lifts and work by others are included only when expressly listed in the written proposal.
