ASW34 · Supplier product visual

ASAŞ supplier model.
Fabricated and installed by Latvera.

Supplier product visual

ASW34

Slim Joinery System

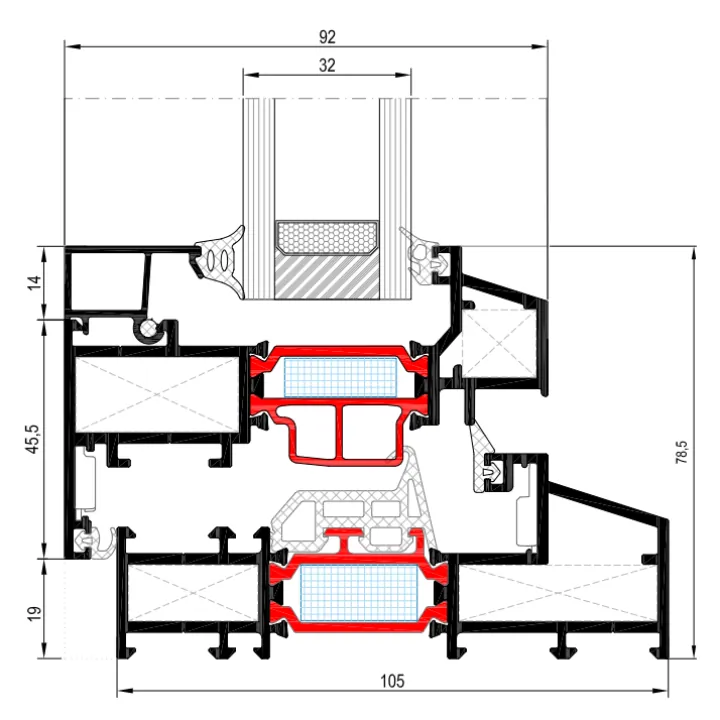

ASW34 · supplier profile section
Supplier profile section

ASAŞ supplier model.
Fabricated and installed by Latvera.

Insulated slim joinery system.

Frame Depth
82/105 mm
Vent Depth
92 mm
Profile Wall Thickness
2 mm
Glass Thickness
max. 42 mm
Thermal Insulation Bars
34 mm
Application formats
Window, Inward Opening, Outward Opening, Bottom Hung, Tilt & Turn

ASAŞ values as listed. Confirm the project’s selected configuration.

Technical PDF  (opens in a new tab)
ASAŞ · Doors & windowsDiscuss ASW34

Technical details.

ASAŞ / ASW34

Insulated slim joinery system.

Frame Depth
82/105 mm
Vent Depth
92 mm
Profile Wall Thickness
2 mm
Glass Thickness
max. 42 mm
Thermal Insulation Bars
34 mm

Application formats

  • Window
  • Inward Opening
  • Outward Opening
  • Bottom Hung
  • Tilt & Turn

ASAŞ values as listed. Confirm the project’s selected configuration.

Profile section ASW34 · supplier profile section Supplier profile section (opens in a new tab)

ASW34Door & window systems

Start withyour space.

Project notes.

Finish options

Confirm available colors and the selected finish with the project team.

Project & technical notes

Verified specifications

Sizes, spans, loads, thermal values and applicable glazing, motors or fabrics require current supplier data and approved project documents.

Project conditions

Final appearance and performance depend on selections, site conditions, engineering, codes, permits, substrates, installation, supplier data, maintenance and the signed agreement.

Warranty and service

Coverage follows the selected system, components, approved scope, installation conditions and signed agreement. Separate components may have different coverage; the final project warranty governs.

Included scope

Permits, engineering, stamped calculations, surveys, concrete, electrical work, additional waterproofing, drainage connections, cranes, lifts and work by others are included only when expressly listed in the written proposal.

Complete technical, warranty, scope and image terms · page 31 (opens in a new tab)

Images may show optional accessories or adjacent work. Final appearance, configuration and performance follow the approved project.
